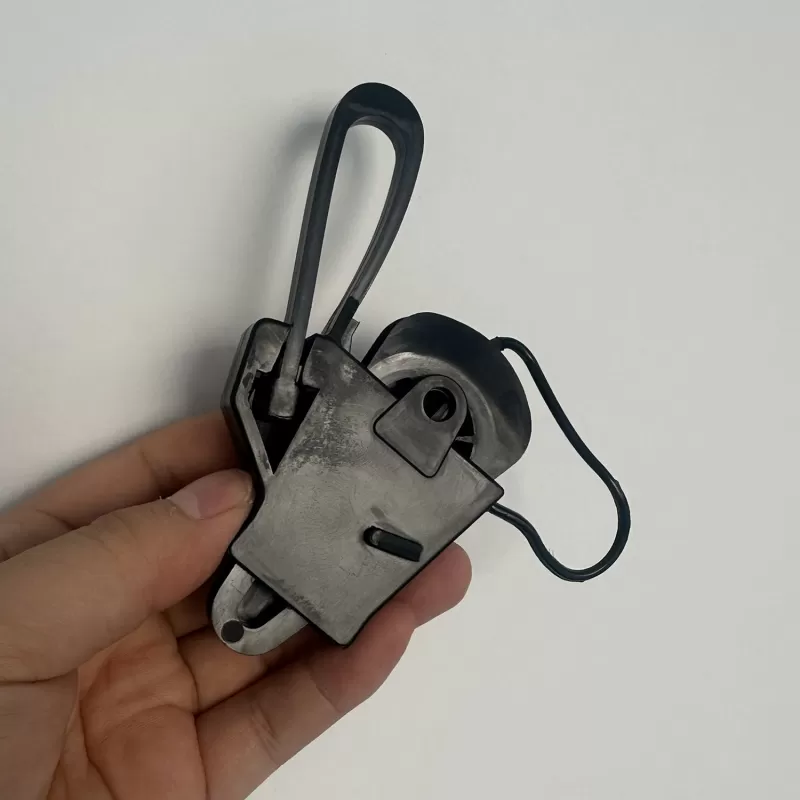

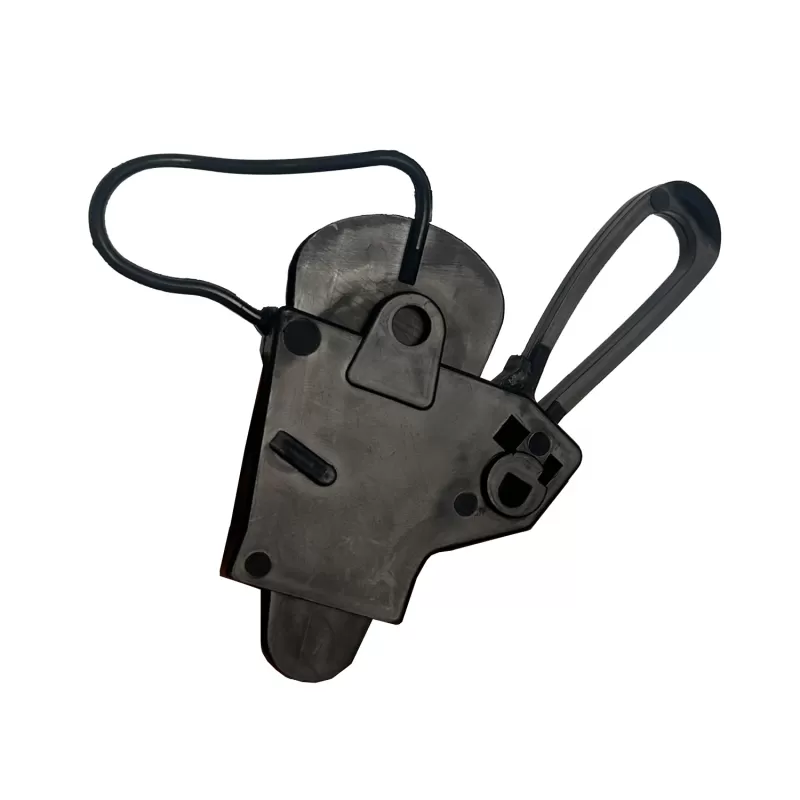

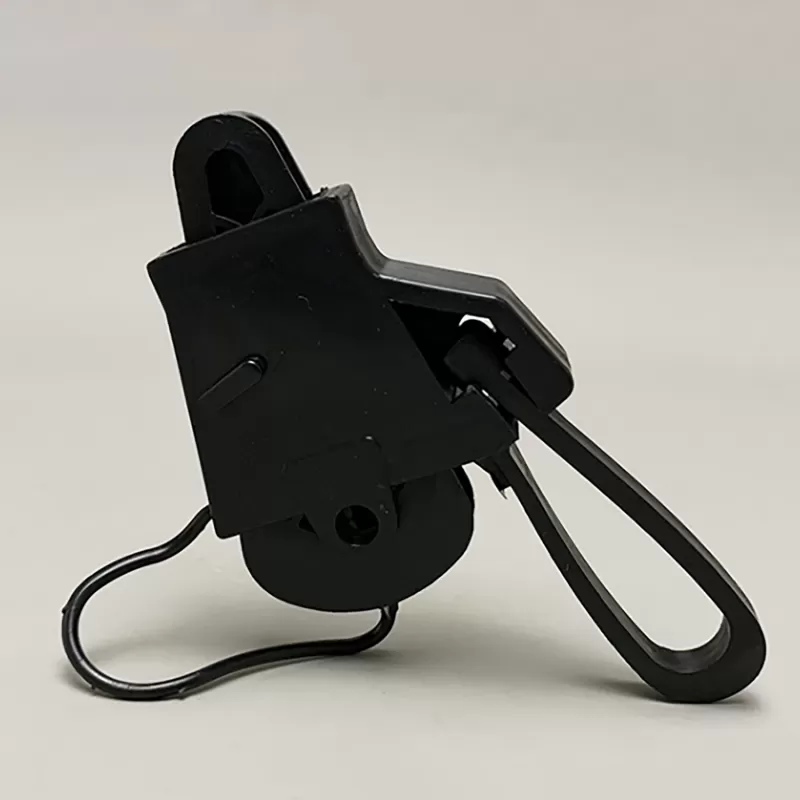

This is an all-plastic cable clamp made of PA66 reinforced material, ensuring excellent flexibility. During overhead fiber optic cable installation, the open hook can be used with the closed hook for universal fixation. The plastic hooks are not removable. The suspended cable clamp is equipped with a self-adjusting wedge block to prevent cable damage. Suitable fiber optic cable types with wedge radii include small circular cables and circular FTTH cables. The radius of the wedge-shaped cable fully meets the minimum bending radius requirements of optical fiber.
Features
Tool-free installation
Manual adjustment
U-shaped design ensures consistent cable entry and exit directions
Compatible with hooks of various shapes 5. Plastic insulation
Application
* FTTH System

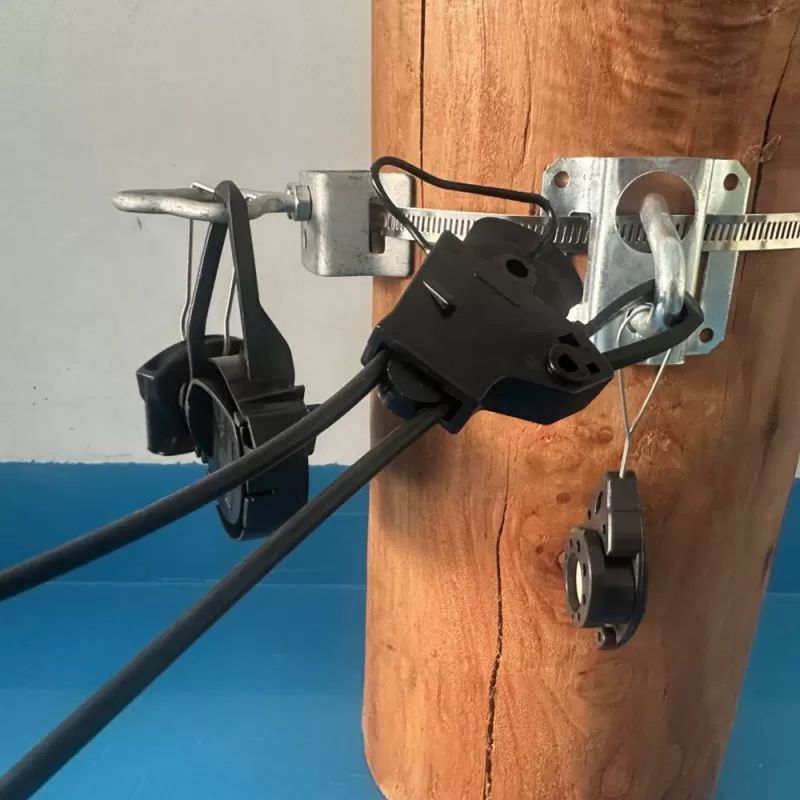

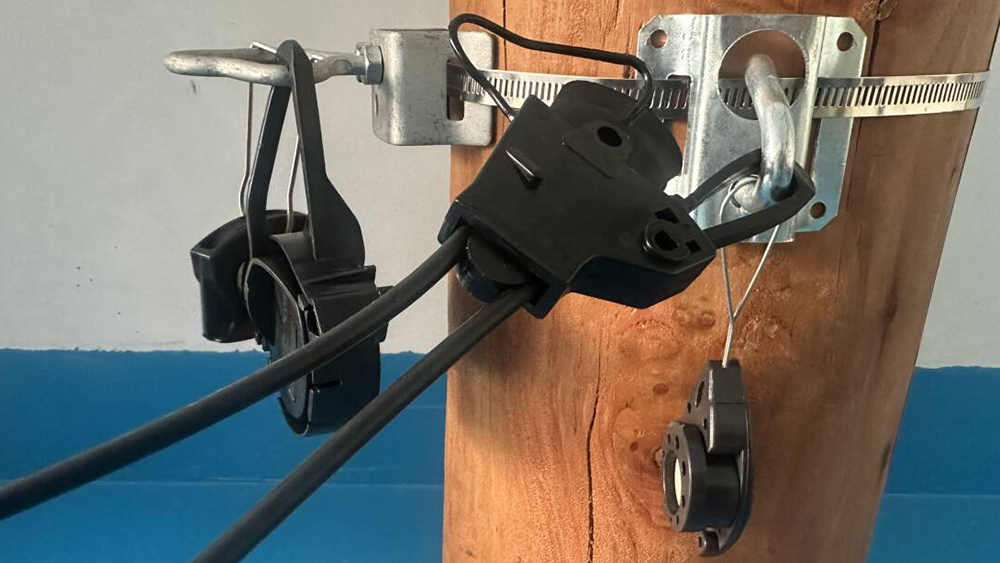

* Walls, Poles with drive hooks,
* Pole brackets
* other ftth drop cable fitting or hardwares
Specifications
Type | WT-10815 CLp |
Cable Diameter | 2.5~6mm |
Weight | 0.39kg |
Material | PA66 |
Pull | 600N |
Packing | 200pcs/box 38*30*26cm 8kgs |
Test Conditions & |
Equipment |
Objective |
Verify clamp withstands 600 N tensile force without deformation, slippage, or damage (using 3.0 mm round cable). |
Test Equipment | Digital Tensile Tester |
Equipment Model | WT-TSM200 |
Calibration Due | 2026-08-15 (valid) |
Test Cable | 3.0 mm round drop cable (FRP strength members, 2x3.0mm) |
Ambient Temperature | 23 °C |
Ambient Humidity | 65 %RH |
Reference Standard | YD/T 1997–2014 / IEC 60794-1-21 |
Test Method | ||
1. Insert 3.0 mm round drop cable into clamp, secure using tool-free mechanism (conical wedge). 2. Mount assembly on tensile tester WT-TSM200. 3. Apply tensile force gradually from 0 N → 600 N at constant speed. 4. Hold at 600 N for 10 seconds — observe for slippage / deformation. 5. Release load, inspect clamp and cable for damage.
Test Results (600 N Load) | ||
Parameter
Slippage at 600 N (10 sec hold) | Observation
✅ No slippage / 。Slippage | Pass/Fail PASS |
Deformation of clamp at 600 N | ✅ No deformation / 。 Deformed | PASS |
Damage after test (crack/break) | ✅ No damage / 。 Damaged | PASS |
Cable condition after test | ✅ Intact / 。Jacket cut / damaged | PASS |
✅
PASS · 600 N No deformation, no slippage, no damage — tested with 3.0 mm round cable at 23°C / 65% RH.
| ||

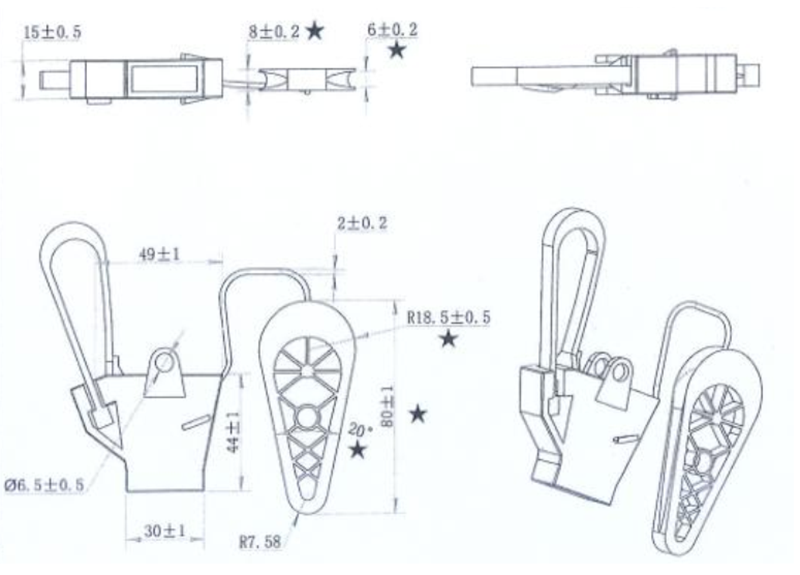

Dimensions
