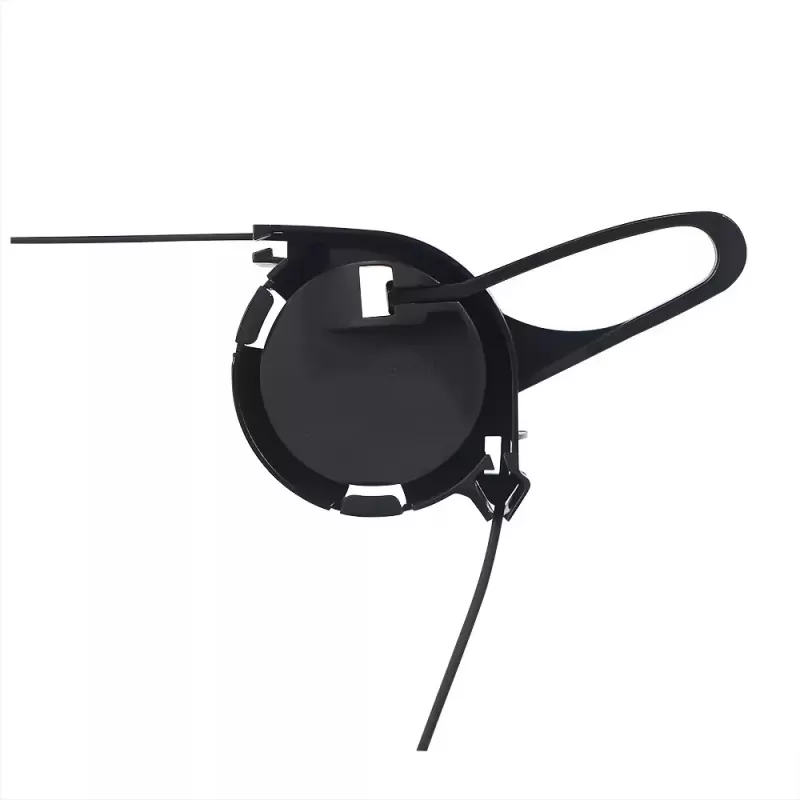

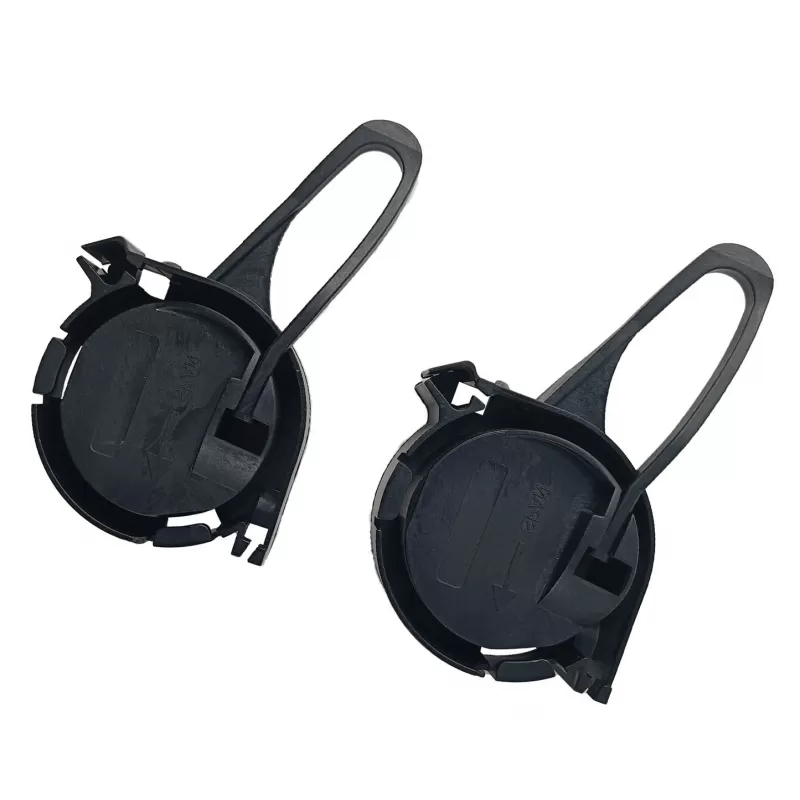

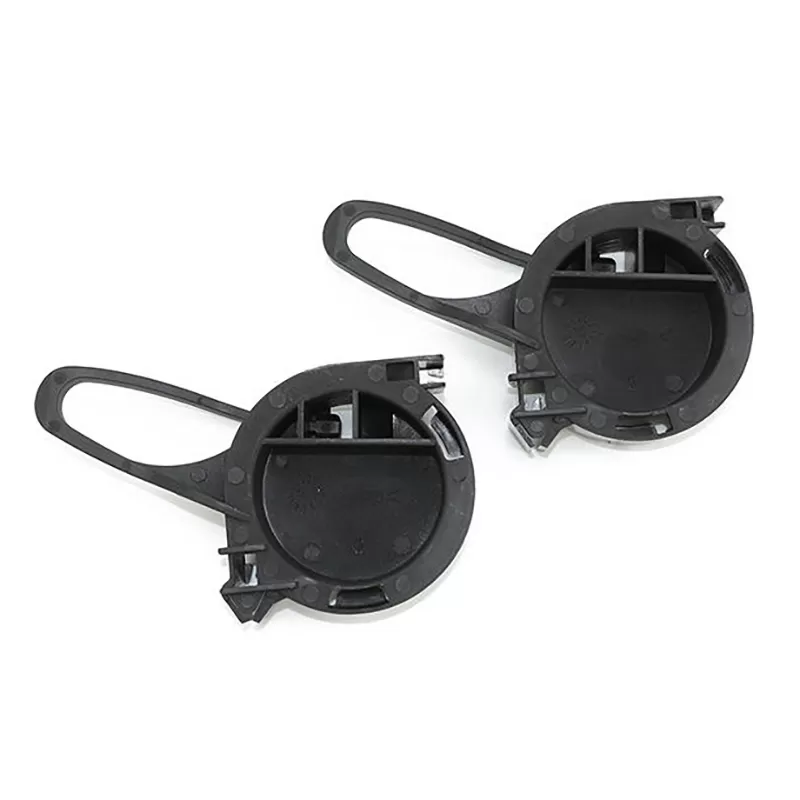

This is a fully plastic cable clamp made of PA66 material,It is intended for suspension of FTTH Drop Cable .It consists of a round (heart-shaped) body and an open bow-duck that can be securely clamped into the clamping body.The design and winding method of the circular wire avoid the increase in fiber loss caused by excessive tension of the optical cable, and the friction force and outer sheath force are uniform. The 90 degree fiber outlet method has outstanding advantages in corner laying environments. Suitable for flat wire with a diameter of 2-8mm and round wire with a diameter of 2-6mm, with special snap fasteners for easy installation.

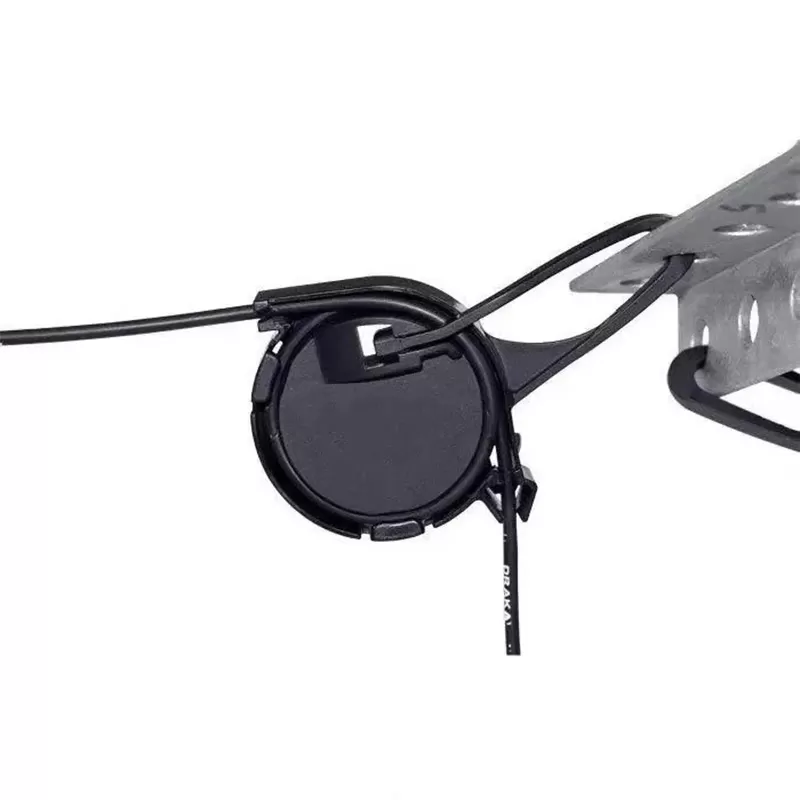

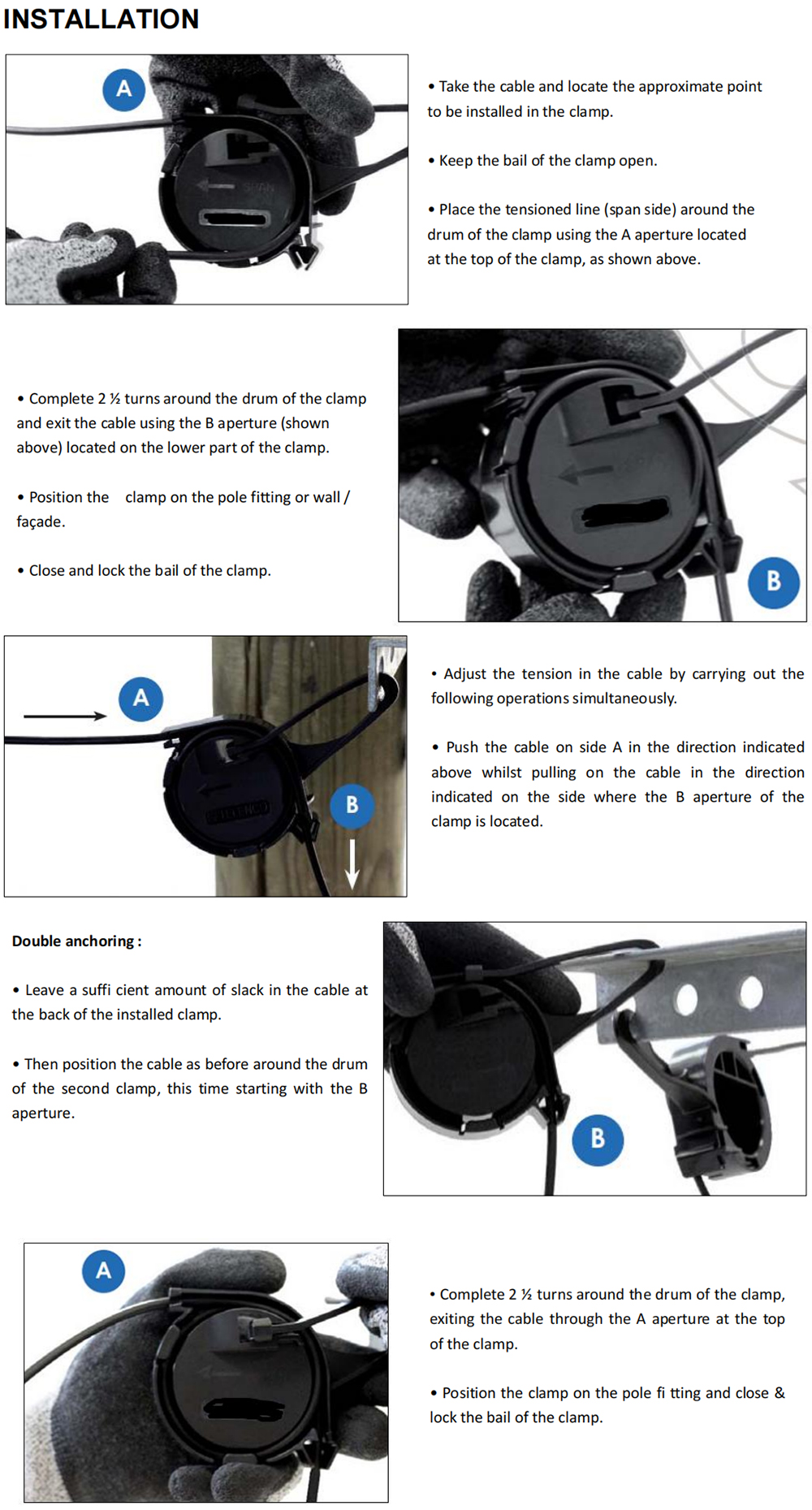

Used as an anchorage of a flexible cable on the end support (on poles, buildings). When using two clamps, suspension is carried out on intermediate supports.
Feature:
Excellent nylon material+UV.
2.The circular winding method increases friction force.
3. Common to circular and flat optical cables.
4. The design of the buckle facilitates installation.
5. Available in high-quality nylon material colors.
6. The 90 degree outlet method is suitable for special corner environments.
