Aerial Optical Fiber Cable Storage Unit Bracket Adss Fiber optic cable Storage Box
Optical cable storage bracket
Optical fiber cable storage bracket
Optical cable storage units
Optical cable storage units reel
fiber cable storage bracket

Aerial Optical Fiber Cable Storage Unit Bracket Adss Fiber optic cable Storage Box

Model Number: WT-D600

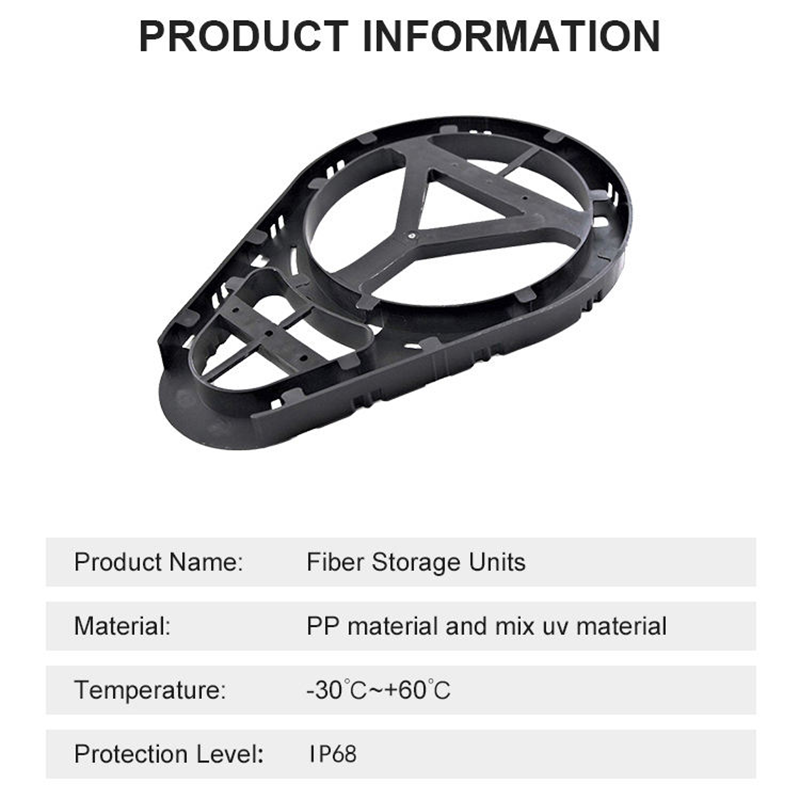

Product Name: Fiber Cable Storage Units

Material: PP material and mix uv material

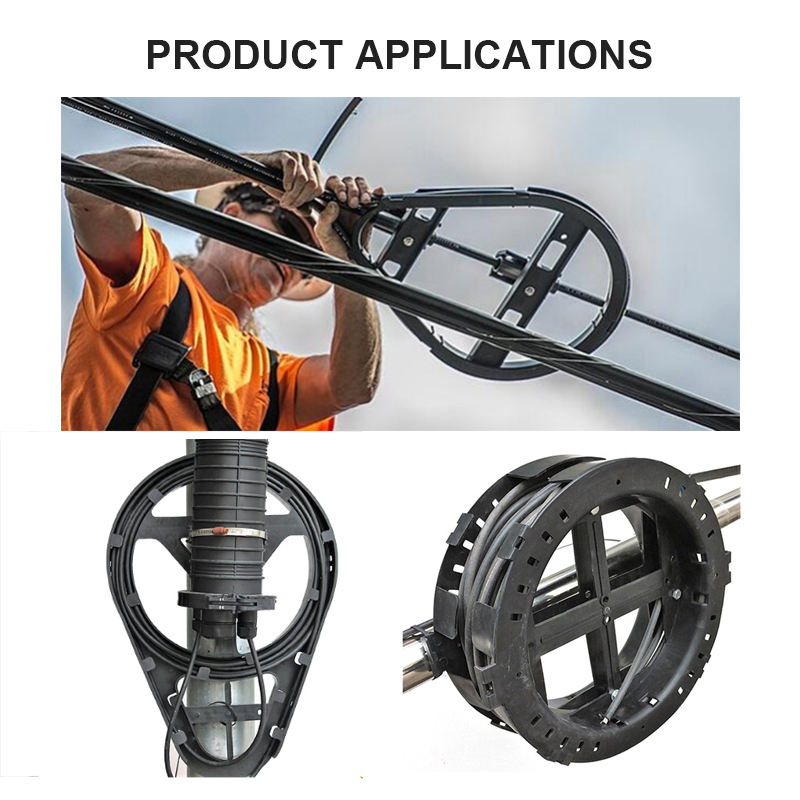

Application: Outdoor Aerial Overhead fiber optic cable

Channel Wide*Deep: 44*44mm

Out side Wide*Long: 440*640mm

Temperature: -30℃~+60℃


share:

Description Contact Us

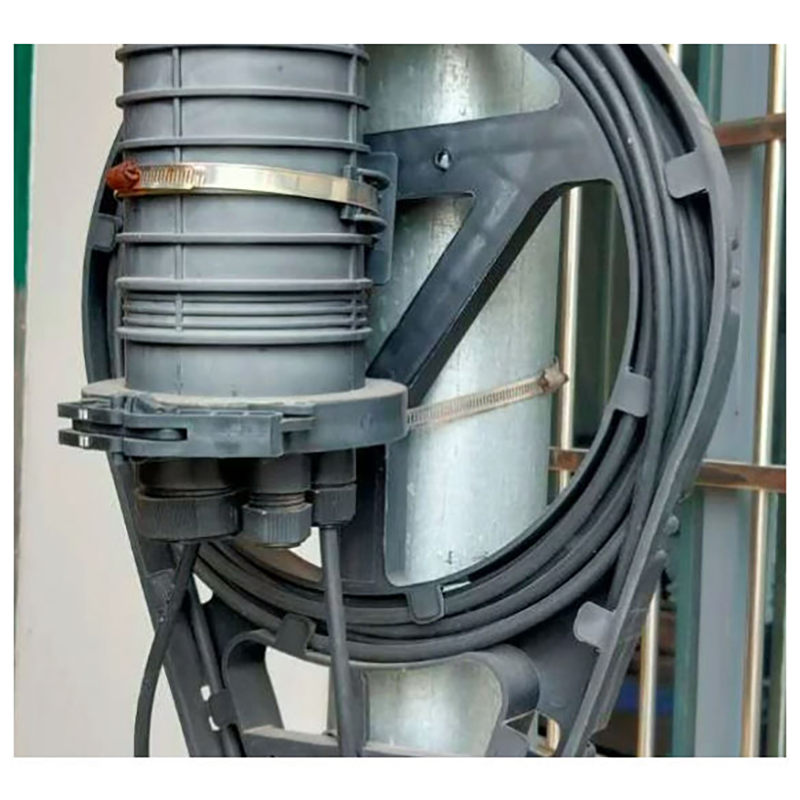

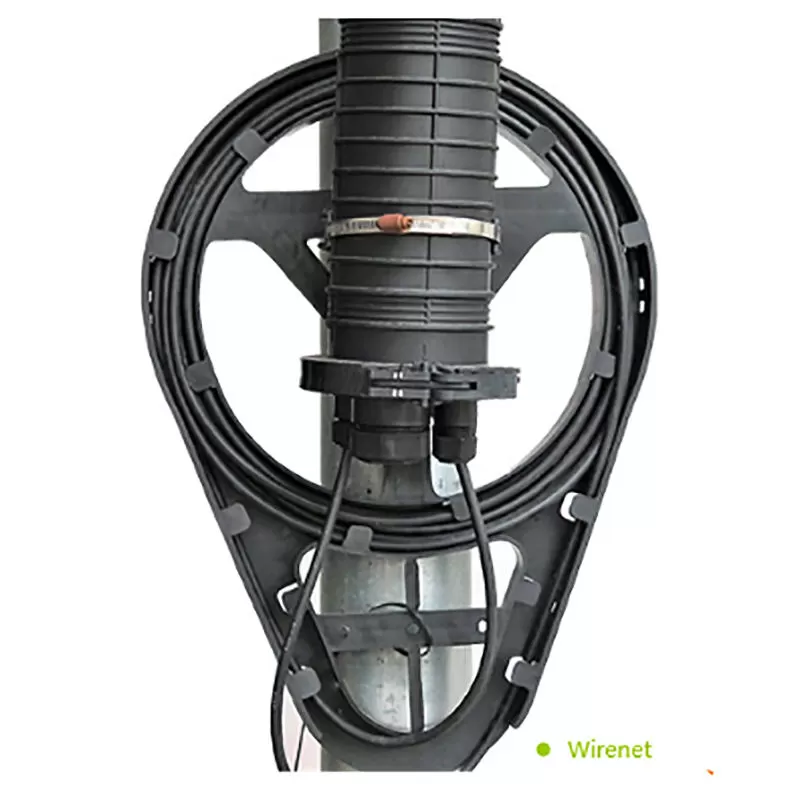

Fiber Cable Storage Unit are used to store coil an overplus length of cable. It can be independent used or paired units .(use hanger brackets mount on stand or pole), FSU are constructed from PP material.

1. Cable can be storage alone inside round channel or oval round channel.
2. The channel is designed to tie the cable and coil it, ice and water leaf was also be designed
3. Constructed from PP material . UV material also can be use if need.
4. It can be hanger on steel wire. hanging part (bolts, nuts, washers) and strand clamps all included
5. Cable can be tie wrap slot the channel for securing


Aerial Optical Fiber Cable Storage Unit Bracket Adss Fiber optic cable Storage Box

Aerial Optical Fiber Cable Storage Unit Bracket Adss Fiber optic cable Storage Box

Aerial Optical Fiber Cable Storage Unit Bracket Adss Fiber optic cable Storage Box

Channel Wide*Deep
44*44mm
Out side Wide*Long
440*640mm
Inside Round
400mm
Minimum Bend Diameter
20mm
Temperature
-30℃~+60℃
Weight
1100g
Storge Cable Length
12m
