ADSS Aerial Fiber Cable Thermoplastic Anchor Clamps

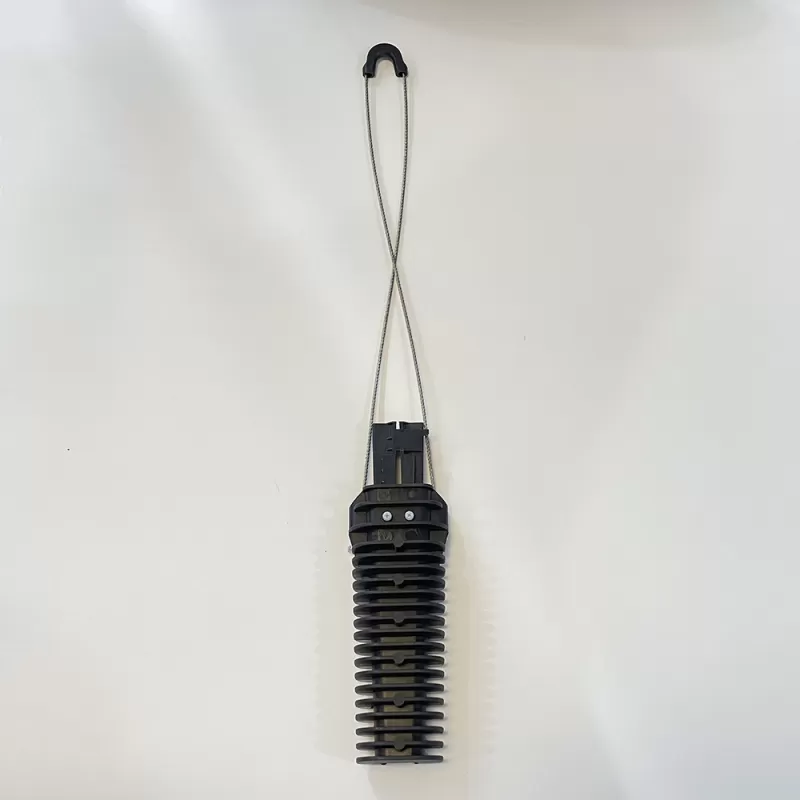

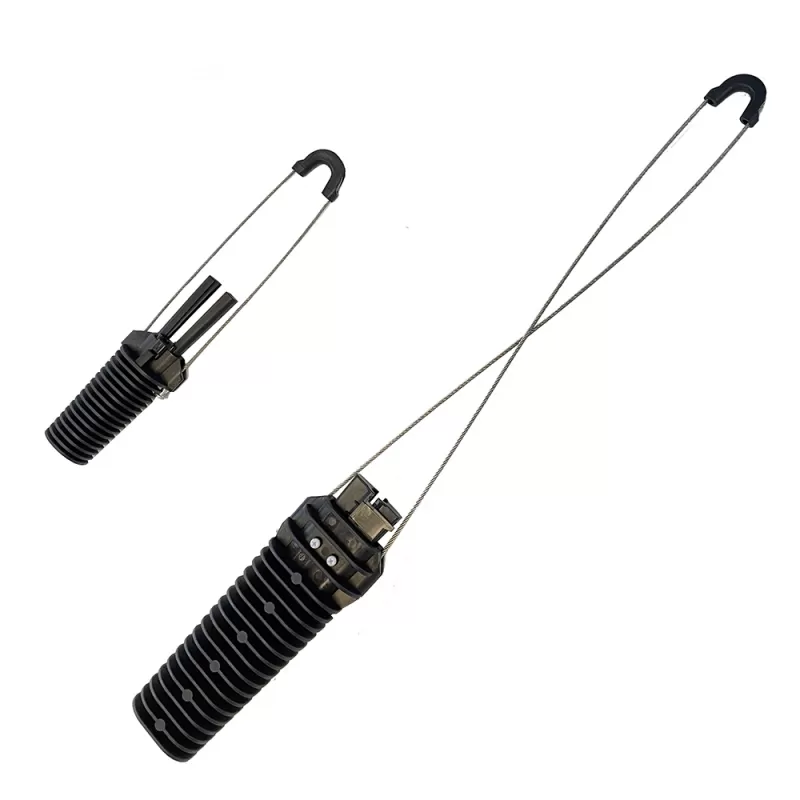

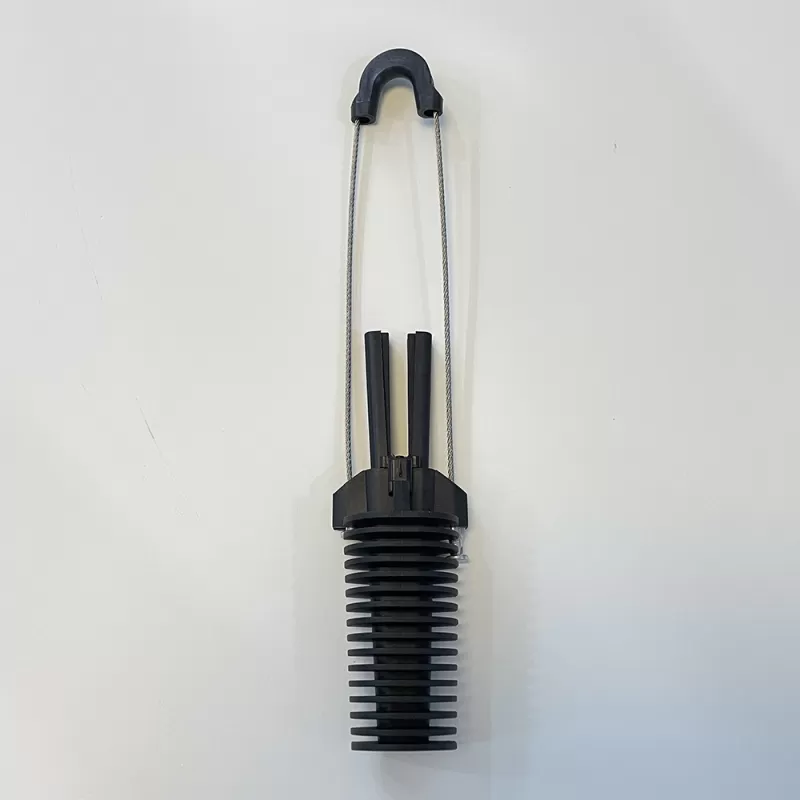

ADSS aerial thermoplastic clamps are made of an opened conical body, a pair of plastic wedges and a flexible bail equipped with an insulating thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamps is not under full load. All parts are secured together to prevent any loss during installation

Features

* allow easy,quick and safe installation

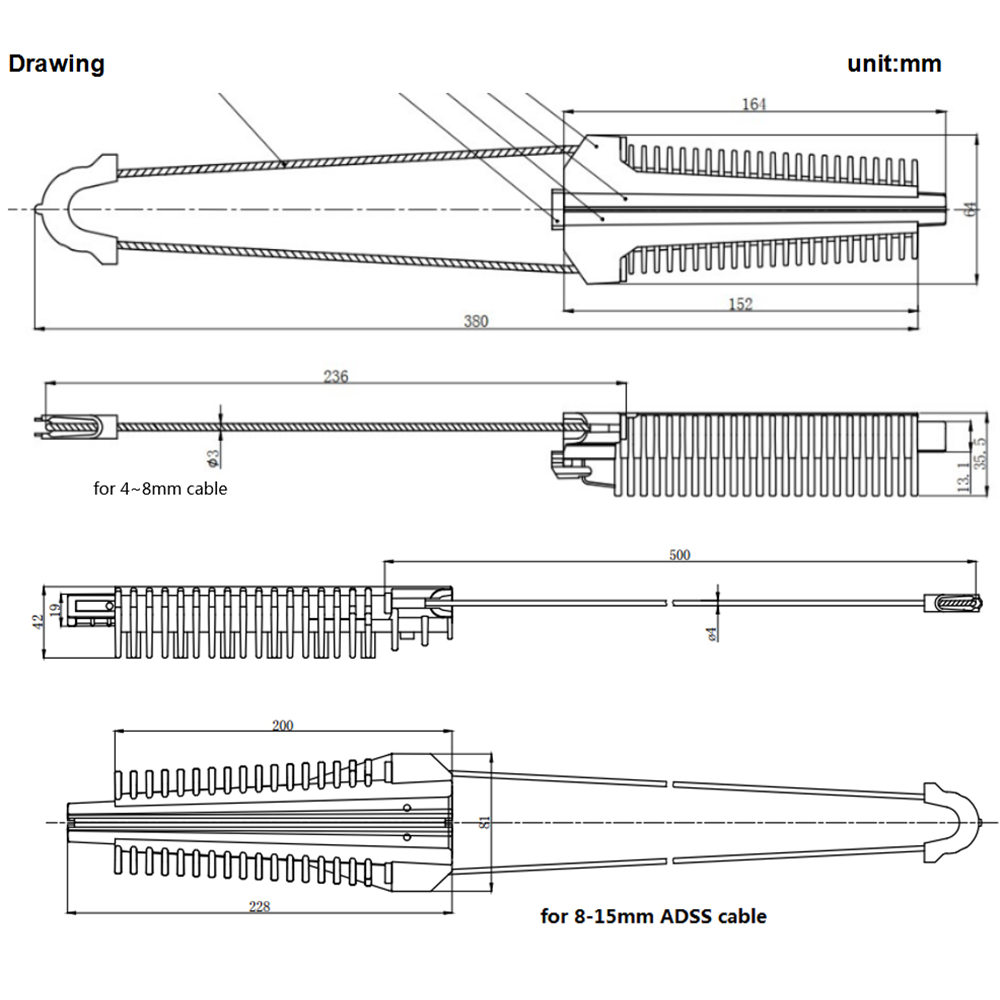

* Suitable for dead-ending and double dead-ending 4-8mm and 8~15mm ADSS drop cable

* Light and compact products

* Installation takes seconds

* The flexible bail provides an extra protection to the cable against vibrations

* 4 kV or 11 kV insulation provided

Technical Parameter

Application:

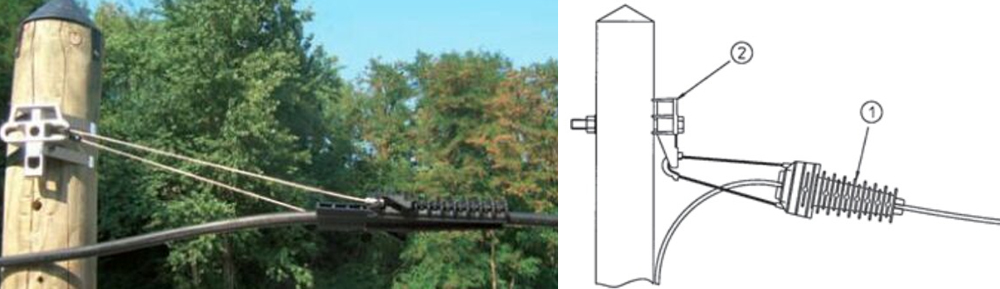

1, End-poles:dead-ending

Configuration: 1 aerial thermoplastic clamp (1) + 1 universal pole bracket (2)

How to fasten: 1 drilled poles or 2 pole with 2 buckles

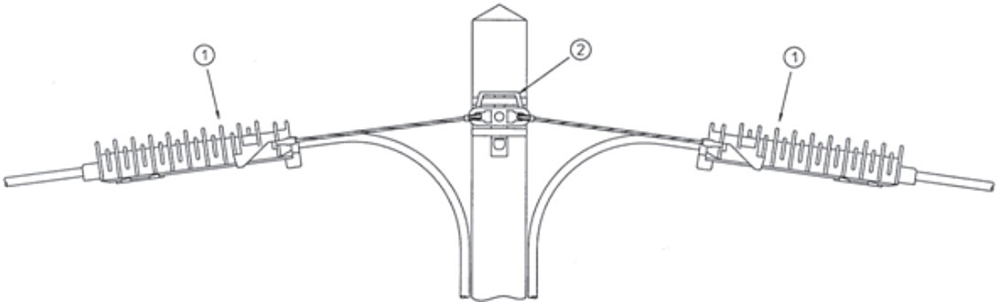

2, Double dead-ending

Configuration: 2 aerial thermoplastic clamp (1) + 1 universal pole bracket (2)

How to fasten: 1 drilled poles or 2 pole with 2 buckles
