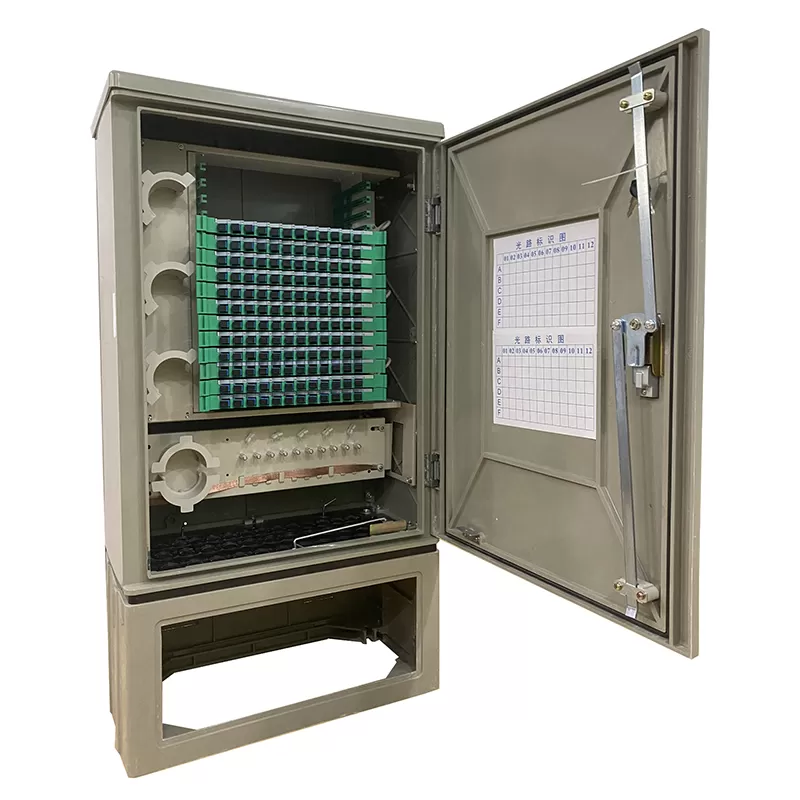

Fiber Distribution Cabinet
Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve adirect connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing , the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.

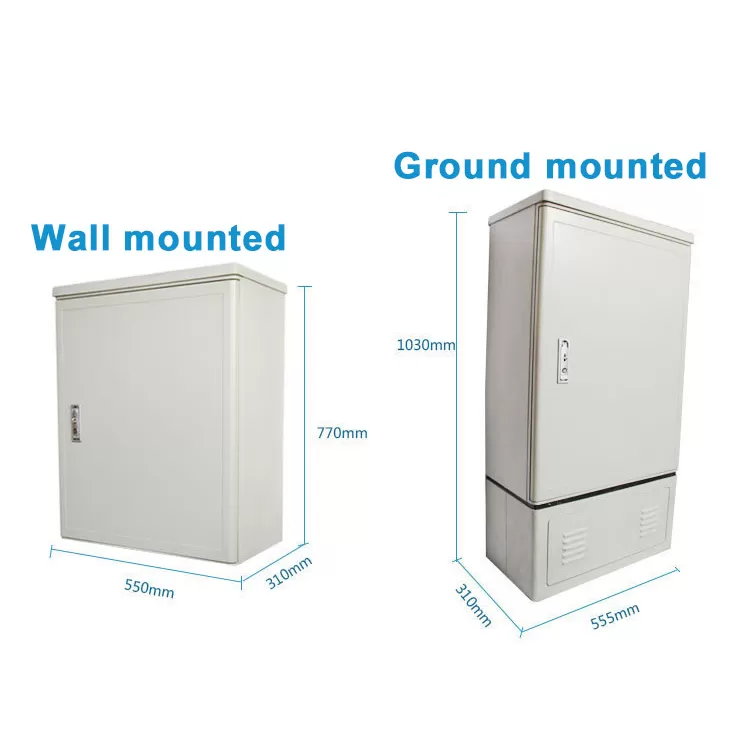

Fiber optic distribution cabinets provide fiber distribution to subscribers through compact, environmentally friendly outdoor terminals. The terminals have space for multiple splitters to allow for incremental growth. They can be mounted on pedestals, poles, or walls to provide placement flexibility and are ideal for multi-dwelling unit distribution in centralized or distributed fiber network terminations.
Features
1.High strength and good corrosion resistance.
2.Resistant to climate change and extreme environment.
3. Capacity can be flexibly customized as needed.
4. Quick and easy installation.
5.Built-in direct connection unit.

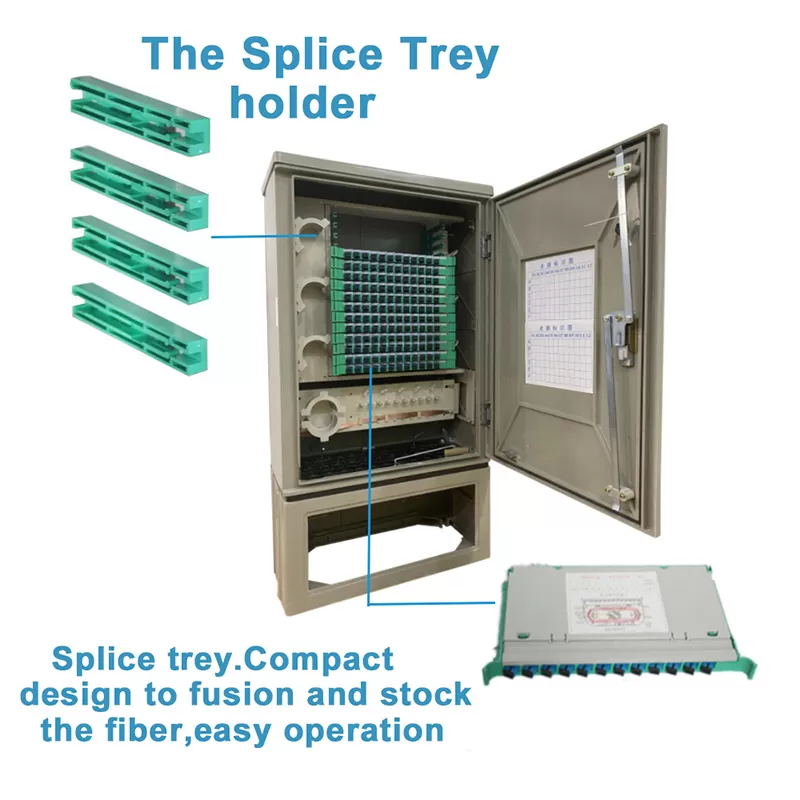

6. Perfect fiber optic alignment design, convenient for fiber optic management and maintenance.
7. With safe and reliable fiber fastening and grounding protection device.
8. Suitable for ribbon and non-ribbon fiber.
Specification
Nominal work wave-length | 850nm, 1310nm, 1550nm |
Protection level | IP65 |
Work Temperature | -45°C-+85°C |
Relative humidity | ≤85%(+30°C) |
Atmospheric pressure | 70~106 KPa |
Insertion loss | ≤0.2dB |
Return loss | ≥45dB (PC),55dB(UPC),60dB(APC) |
Isolation resistance(between frame and protection grounding) | >1000 MΩ/500V(DC) |
material | SMC or Cold-rolled steel |
Model | Fiber Quantity | Dimension(cm) | Weight(Kg) |
WT-ODF-OC288 | 288 | 143*75*30 | 50 |
