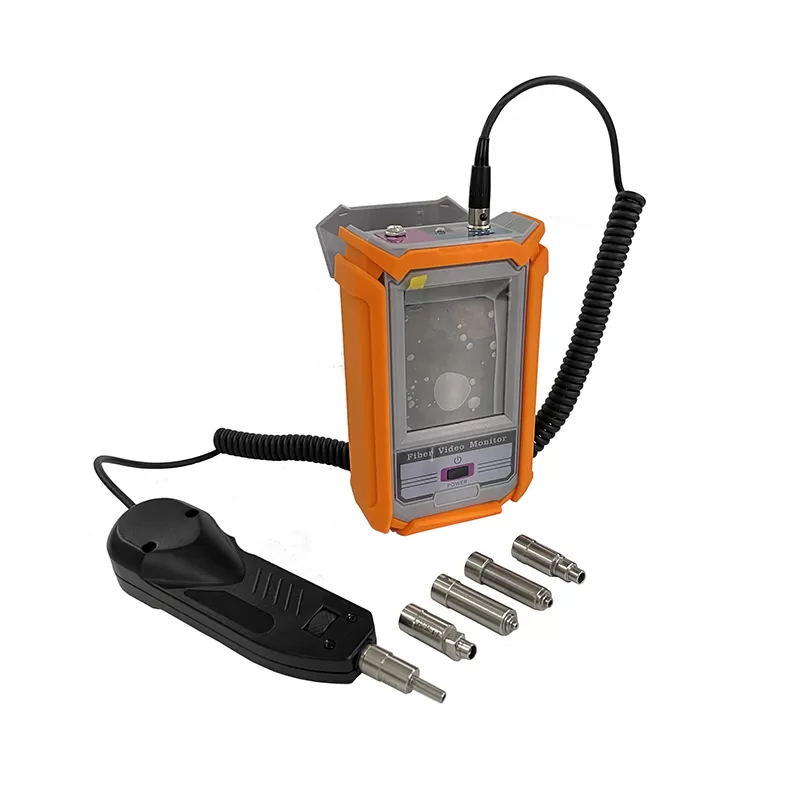

400X 250X Hand held endface inspector fiber optic Inspection microscope probe For Fiber connector

400X 250X Hand held endface inspector fiber optic Inspection microscope probe For Fiber connector

Model Number: WT-HIP-101

Magnification: 400x (9'' Monitor) 250x (3.5'' Monitor)

Resolution Ratio: 0.5 um

Display Screen: 3.5'' TFT-LCD, 960x240 pixels

connector type: 1.25mm and 2.5mm universal, male and female

Video Put: NTSC / PAL

Power Supply: 3.7V 4500mA / 5V 1A Li Battery

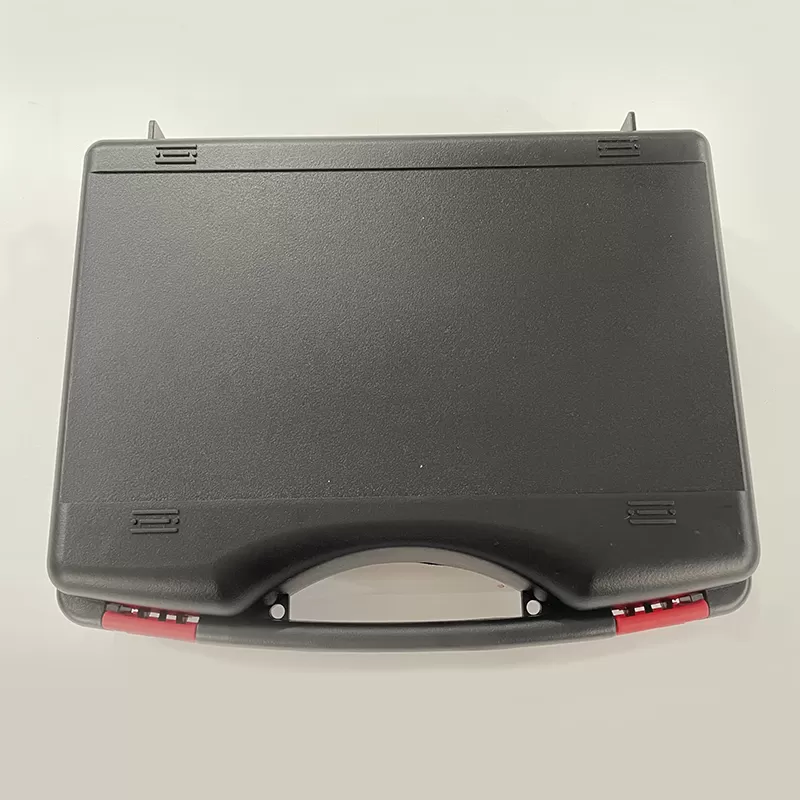

Carring case: crash proof easy carry case

Work Storage: -20℃~+50℃ /-30℃~+60℃

Single package size: 28X25X12 cm

Single gross weight: 1.500 kg


share:

Description Contact Us

          This product is a portable, video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.


Features

* Convenient using both for male and female adapters;
* Widely used in DWDM, SDH, SONET etc.
* Magnification: 250* via 3.5’’ 220,000 pixels TFT LCD;
* Available for USB 2.0 interface on PC and data saving

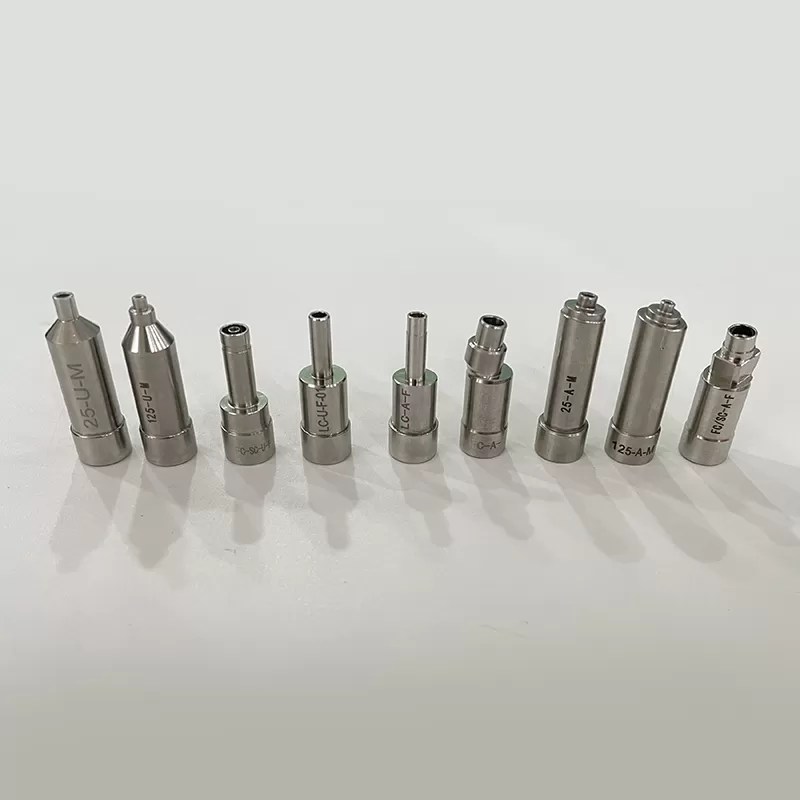

Tips Type
Function Description
25-U-M
FC/SC/ST/E2000 patch cord UPC connector
125-U-M
LC/MU patch cord UPC termination
25-A-M
FC/SC/ST/E2000 patch cord APC connector
125-A-M
LC/MU patch cord APC termination
25-U-F
FC/SC/ST/E2000 UPC bulkhead
LC-U-F
LC UPC bulkhead
SC-A-F
SC APC bulkhead
FC-A-F
FC APC bulkhead
LC-A-F
LC APC bulkhead

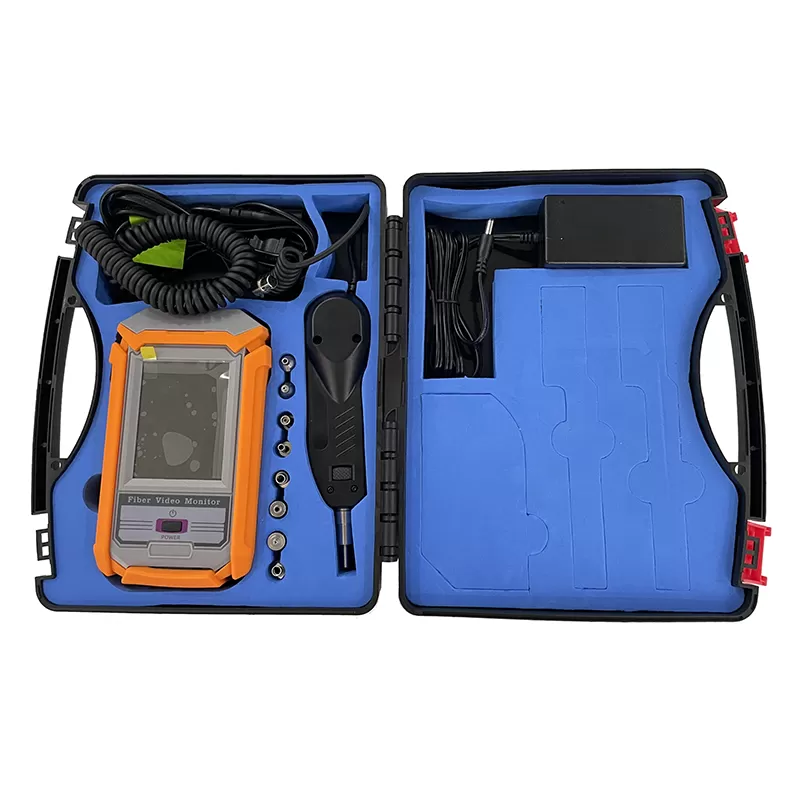

Standard Accessories

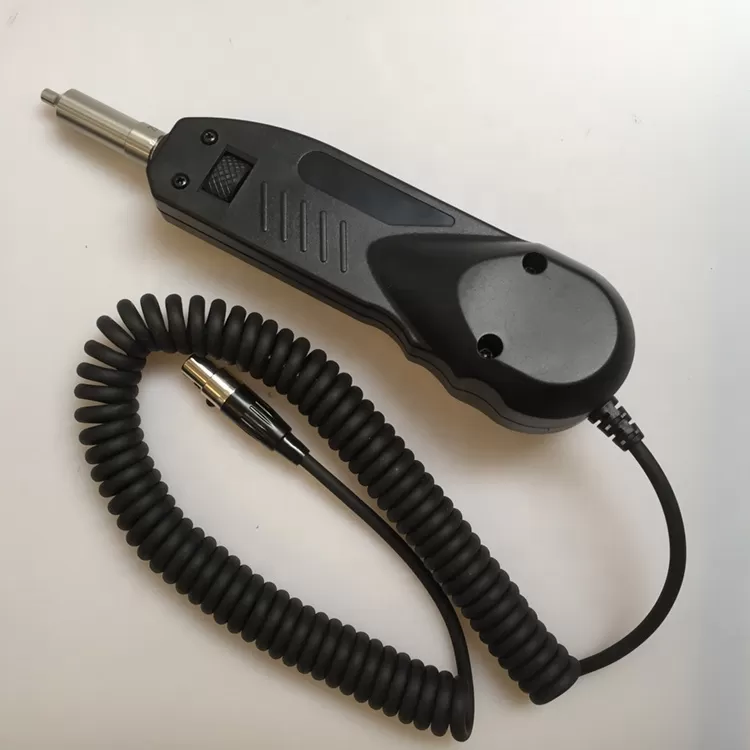

* Inspection Probe x1
* 3.5’’ monitor x1
* 25-U-M x1
* 125-U-M x1
* 25-U-F x1
* LC-U-F x1
* Recharger ; Manual ;
* Carrying bag ; Li Battery


Magnification
400x (9’’ Monitor) 250x (3.5’’ Monitor)
Resolution Ratio
0.5 um
Display Screen
3.5’’ TFT-LCD, 960x240 pixels
Video Output
NTSC / PAL
Power Supply
3.7V 4500mA / 5V 1A Li Battery
Weight
1.5kg
Work/Storage
-20℃~+50℃ -30℃~+60℃
