2 4 8 16 Channel 100GHz DWDM Module for Sale

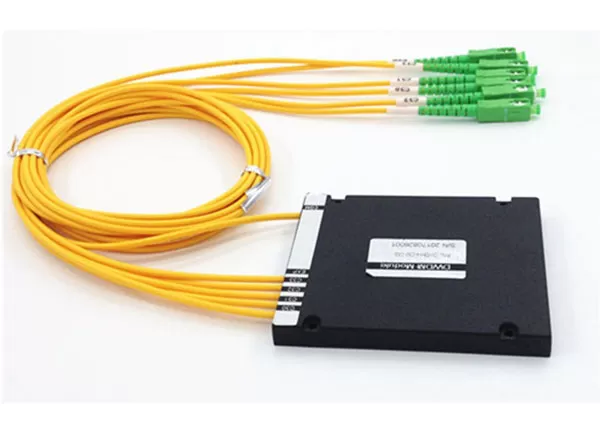

2 4 8 16 Channel 100GHz DWDM Module

Model Number: 100G DWDM Module

Channel Wavelength (nm): ITU 100GHz Grid

Channel Spacing (nm): 100

Inertion Loss Temperature Sensitivity: <0.005 dB/℃

Wavelength Temperature Shifting (nm/℃): <0.002

Polarization Mode Dispersion: <0.1

Directivity (dB): >50

Return Loss (dB): >45

100GHz dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.

Features

1. Channel Add/Drop
2. DWDM Network
3. Wavelength Routing
4. Fiber Optical Amplifier
5. CATV fiberoptic System

Applications

* Direct burial preferred
* Other methods of installation are also available

DWDM Transmission Solutions

DWDM peer-to peer case, chain network case, DWDM+OLP Optical Line protection case

2 4 8 16 Channel 100GHz DWDM Module

Parameter		2 Channel		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		ITU 100GHz Grid
Channel Spacing (nm)		100
Channel Passband (@-0.5dB bandwidth (nm)		>0.3
Insertion Loss (dB)		≤1.0		≤1.8		≤3.0		≤4.5
Channel Uniformity (dB)		≤0.4		≤0.6		≤1.0		≤1.5
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1		<0.1		<0.12		<0.15
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-5~+75
Storage Temperature (℃)		-40~85
Package dimension (mm)		A: L80 x W60 x H12 B: L100 x W80 x H10 C: L120 × W80 × H18 D:L140 x W115 x H18
