The GYFTS04-48F B1.3 is a 48-core, single-mode outdoor fiber optic cable engineered for reliable performance in aerial, duct, and direct-burial installations. It features a stranded loose tube design with PBT tubes filled with water-resistant gel to protect optical fibers from moisture ingress. A non-metallic FRP (Fiber Reinforced Plastic) central strength member provides high tensile strength while eliminating the risk of lightning-induced damage.

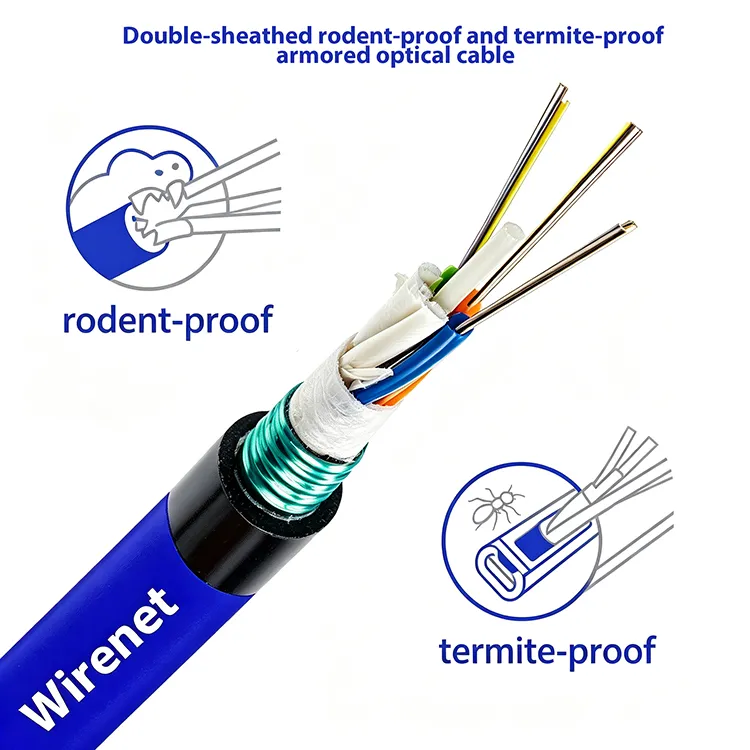

The cable core is wrapped with corrugated steel tape (PSP) for enhanced mechanical protection and moisture resistance, and completed with a durable PA12 nylon outer sheath that offers termite-proof, rodent-proof, and bird-proof protection. This cable complies with IEC 60794-1-2 and ITU-T G.652D standards, ensuring world-class quality for long-distance and local area network communication

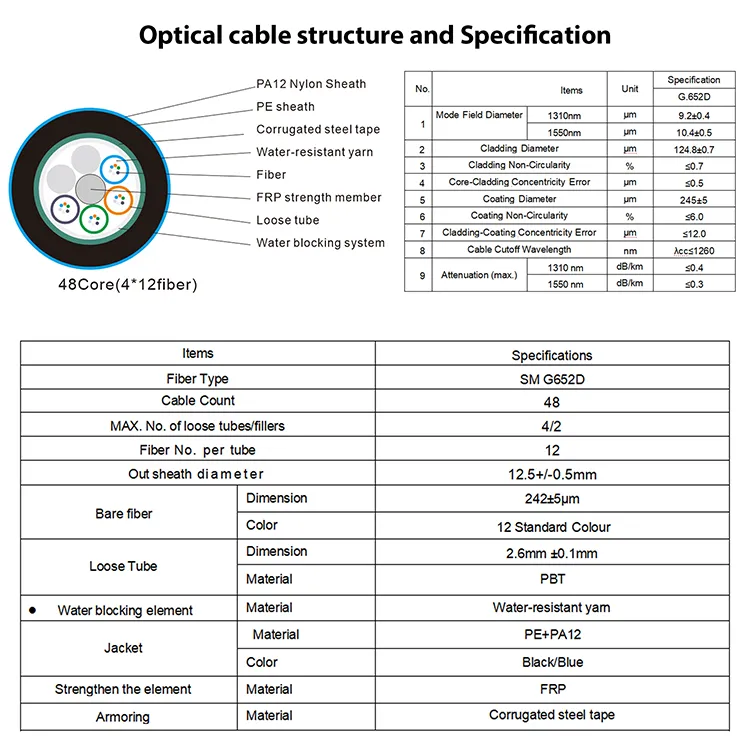

Specification
Items | Specifications | |
Fiber Type | SM G652D | |
Cable Count | 48 | |
MAX. No. of loose tubes/fillers | 4/2 | |
Fiber No. per tube | 12 | |
Out sheath diameter | 12.5+/-0.5mm | |
Bare fiber | Dimension | 242±5μm |
Color | 12 Standard Colour | |
Loose Tube | Dimension | 2.6mm ±0.1mm |
Material | PBT | |
Water blocking element | Material | Water-resistant yarn |
Jacket | Material | PE+PA12 |
Color | Black/Blue | |
Strengthen the element | Material | FRP |
Armoring | Material | Corrugated steel tape |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension(Long Term) | N | 1000 |
Tension (Short Term) | N | 3000 |
Crush（Long Term） | N/10cm | 300 |
Crush（Short Term） | N/10cm | 1000 |
Min. Bend Radius（Dynamic） | mm | 20D |
Min. Bend Radius（Static） | mm | 10D |
Operating Temperature | oC | -40～+70 |
Storage Temperature | oC | -40～+70 |
Fiber Technical Parameters:
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating ConcentricityError | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | ||
Features
* High Tensile Strength – Long-term tension up to 1000N and short-term up to 3000N for demanding installations.
* Crush Resistance – Withstands up to 1000N/10cm (short-term) and 300N/10cm (long-term), ensuring durability in underground and duct environments.
* Broad Temperature Range – Operating temperature from -40°C to +70°C ensures stable performance in extreme climates.
* Superior Moisture Protection – Water-resistant gel-filled loose tubes and water-blocking yarns prevent longitudinal water ingress.
* Robust Armoring – Corrugated steel tape armoring enhances resistance to compression and mechanical damage.
* Rodent & Termite Proof – PA12 nylon outer sheath provides protection against wildlife in harsh outdoor environments.
* Non-Metallic Strength Member – FRP central member delivers high tensile strength with excellent lightning protection.
* Standard Compliance – Fully tested to IEC 60794-1-2 and ITU-T G.652D specifications.
Application
* Outdoor Distribution Networks – Ideal for metropolitan area networks and outdoor telecommunication infrastructure.
* Aerial Installation – Suitable for overhead pole-to-pole deployment with excellent tensile strength and UV resistance.
* Duct / Pipeline Installation – Designed for underground conduit and pipeline laying methods.
* Long-Haul Backbone Networks – Perfect for long-distance transmission lines and relay lines between telecommunication centers.
* FTTH / FTTx Access Networks – Suitable for fiber-to-the-home and fiber-to-the-x deployment scenarios.
* 5G Mobile Communication Backhaul – Provides reliable backhaul connections between 5G base stations.
* Smart City & IoT Infrastructure – Connects outdoor sensors, surveillance cameras, and monitoring devices.
* Campus & Industrial Networks – Enables high-speed interconnection between buildings in campuses and industrial parks.
