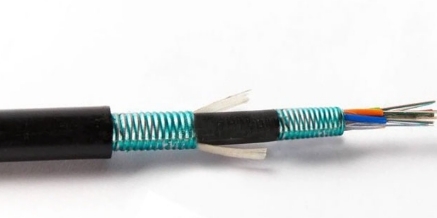

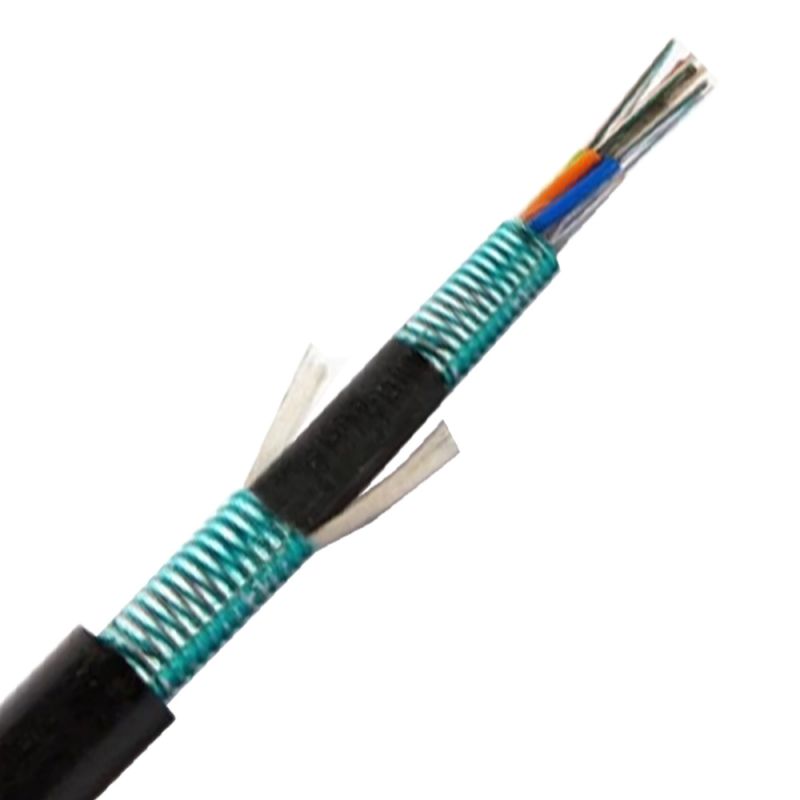

24 48 96 144 Core Optical Fiber Cable GYTS53 Double Armored and Double Sheathed Stranded Outdoor Underground Fiber Optic Cable

1.Cable Description

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. With two Corrugated steel tape member and a PE outer sheath.

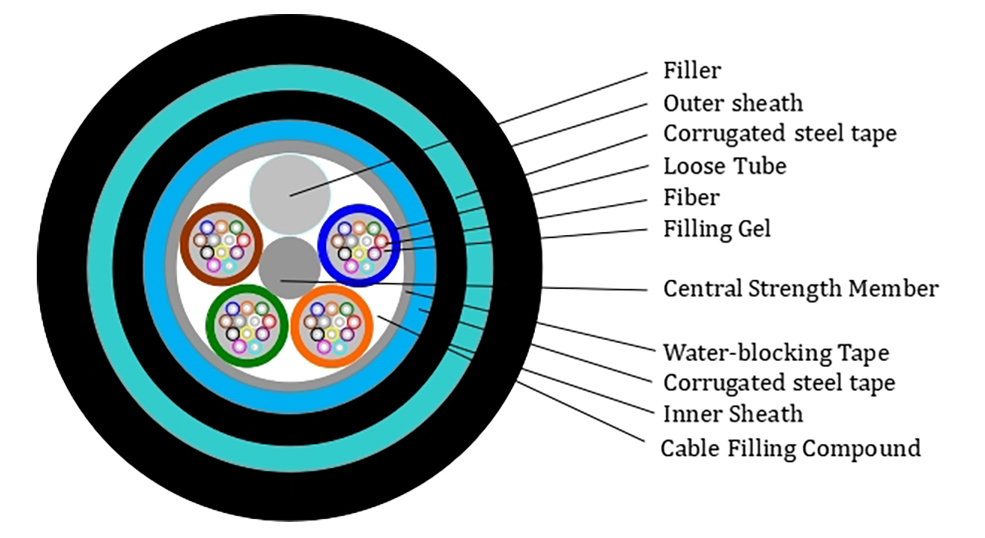

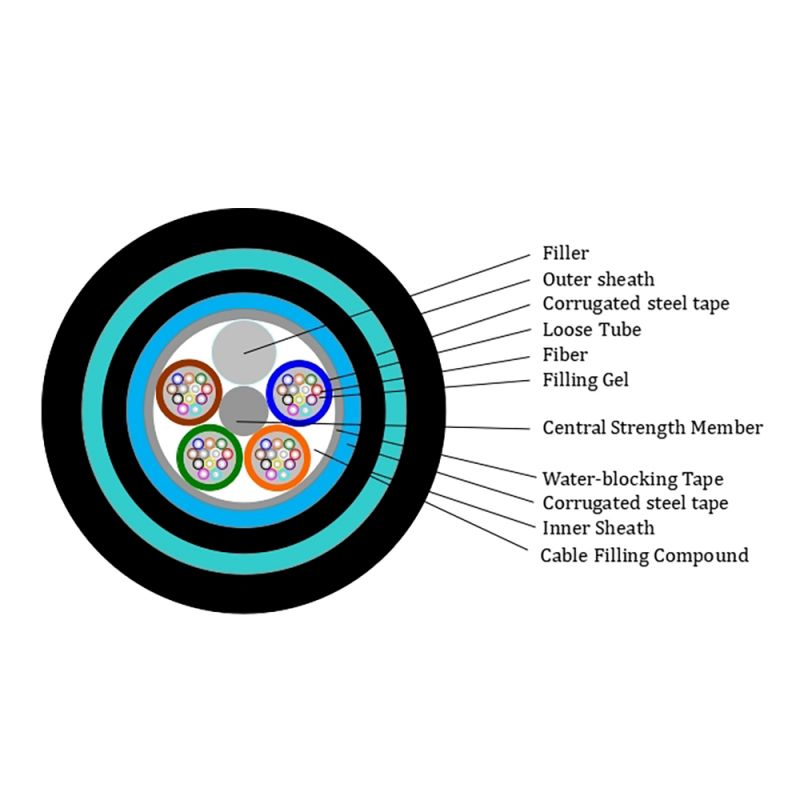

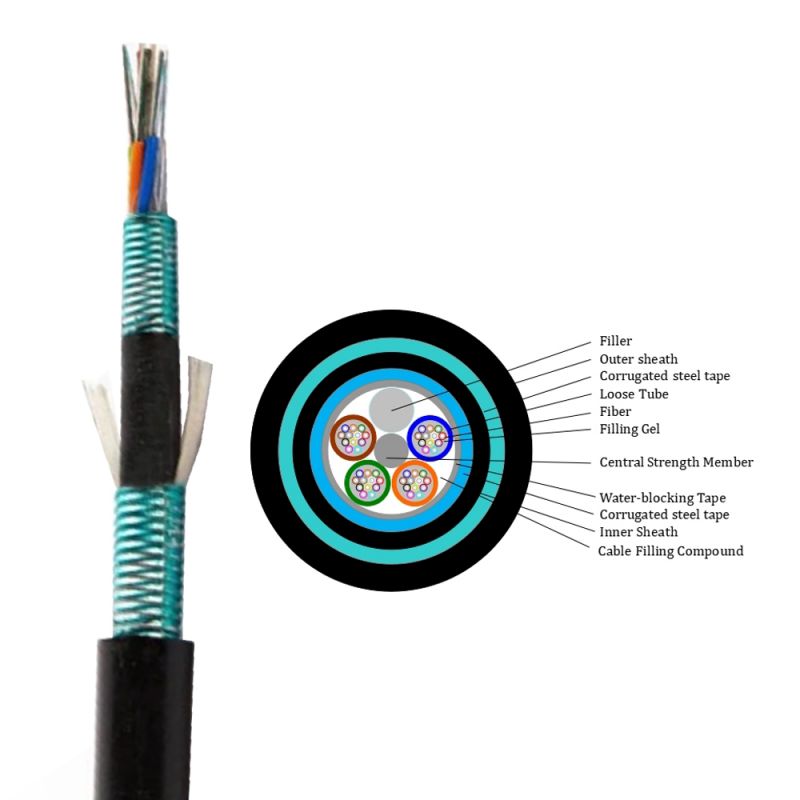

2.Cable Drawing

3.  Application

 *  Adopted to ourdoor distribution;

 *  Suitable for aerial, duct and direct buried;

 *  Long distance and local area network communication.

4.  Characteristics

 *  Good mechanical and temperature performance

 *  High strength loose tube that is hydrolysis resistant

 *  Special tube filling compound ensure a critical protection of fiber

 *  Crush resistance and flexibility

 *  The following measures are taken to ensure the cable watertight:

 *  Steel wire used as the central strength member

 *  Loose tube filling compound and 100% cable core filling

 *  PSP enhancing moisture-proof

 *  Water-blocking material

5. Features:

5.1 Fiber Allocation Scheme

5.2 Cable construction details

6.Cable Mechanical characteristic
