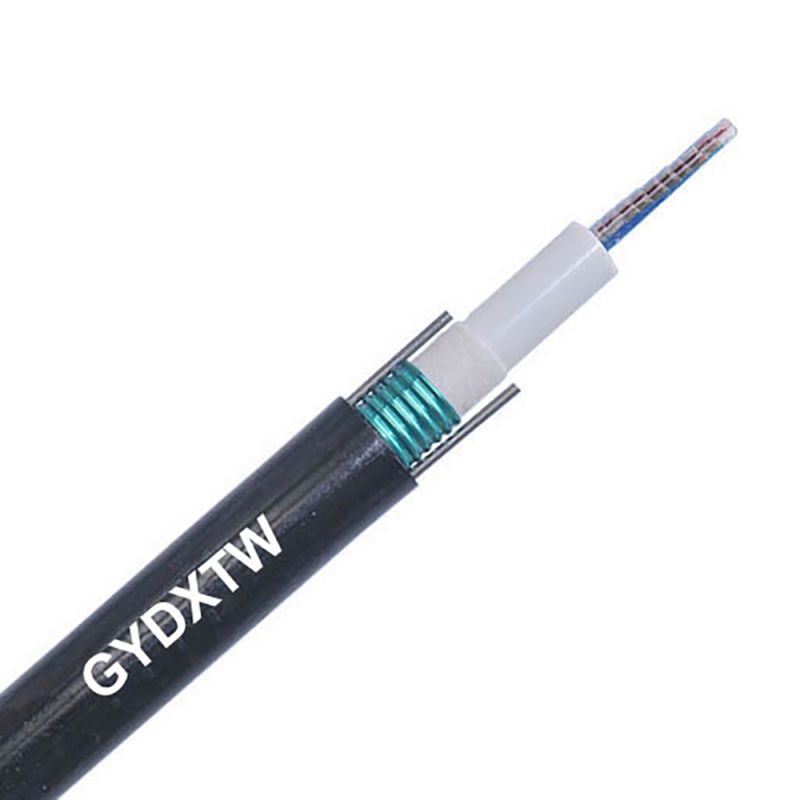

Model Number: GYDXTW
Installation: Direct burial preferred
Cable structure: self-supporting
Operating temperature range: -40°C~+60°C
Characteristics

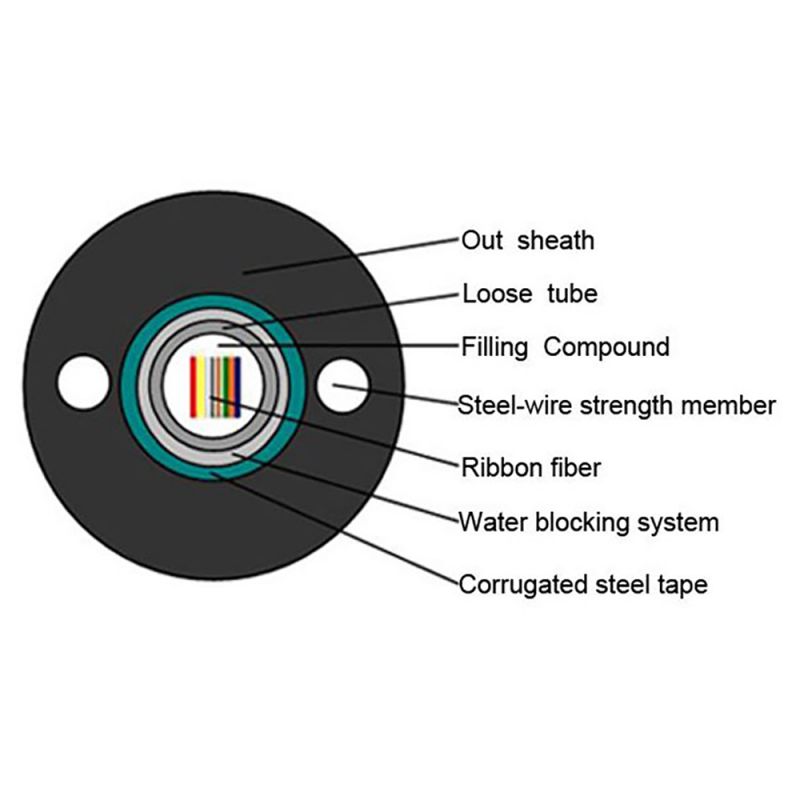

1. Steel-wire parallel member.filler protect tube fiber steel tape amored
2. Adopt optic fiber ribbon.compact structure.light weight .
3. Excellent mechanical and environmental performance .
4. Can be installed conveniently and operated simply.
Operating temperature range
* -40°C~+60°C
Application
* Adopted to Outdoor distribution.
* Suitable for aerial pipeline laying method.
* Long distance and local area network communication.
Method of installation
* Direct burial preferred
* Other methods of installation are also available
Technical Parameter
Cable Count | Out sheath Dia. | Weight | Minimum allowable TensileStrength (N) | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (°C) | |
24 | 15 | 240 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
48 | 15 | 240 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
60 | 15 | 240 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
72 | 15 | 272 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
84 | 15 | 272 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
144 | 15 | 325 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
