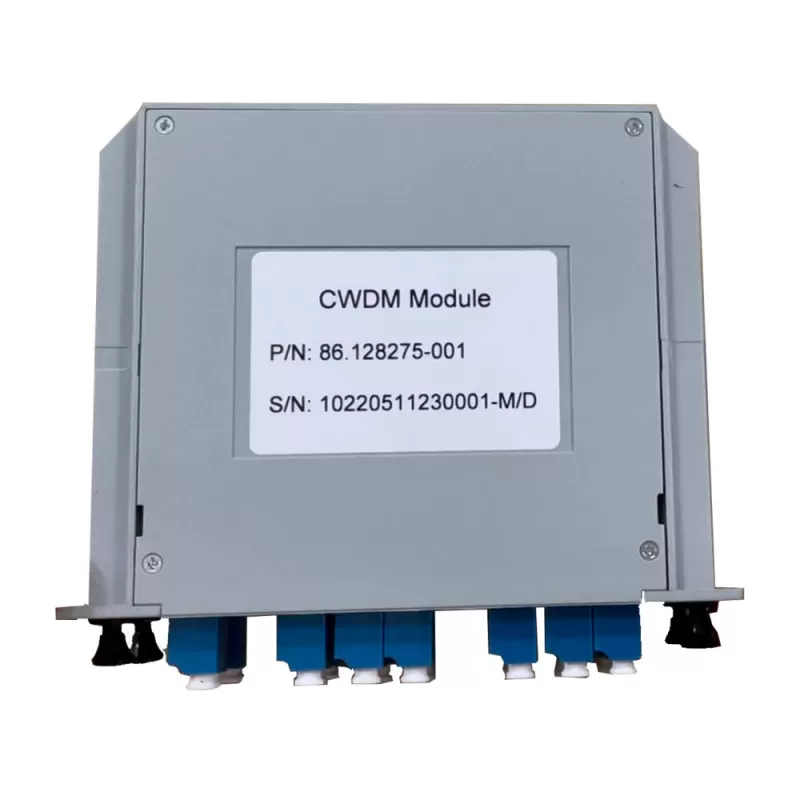

12 Channel LGX Dual Fiber CWDM MUX DEMUX module

Model Number: 12 channel CWDM Mux Demux module

Channel Count: 12 ch

Operating Wavelength: 1260~1620 nm

Channel: 1271~1371,1471~1571 nm

Insertion Loss Mux: <3.2 dB

Insertion Loss Demux: <3.2 dB

Insertion Loss Mux+Demux: <3.8 dB

Polarization Dependent Loss: ≤0.15 dB

Polarization Mode Dispersion: ≤0.2 ps

Return Loss: ≥45 dB

Inquire Now Next Product

Description Contact Us

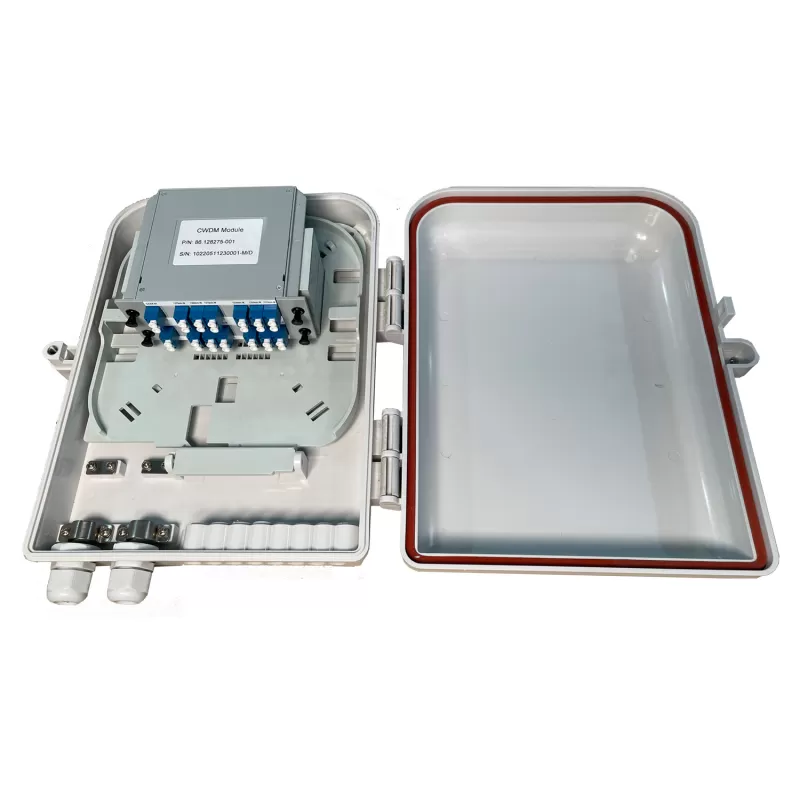

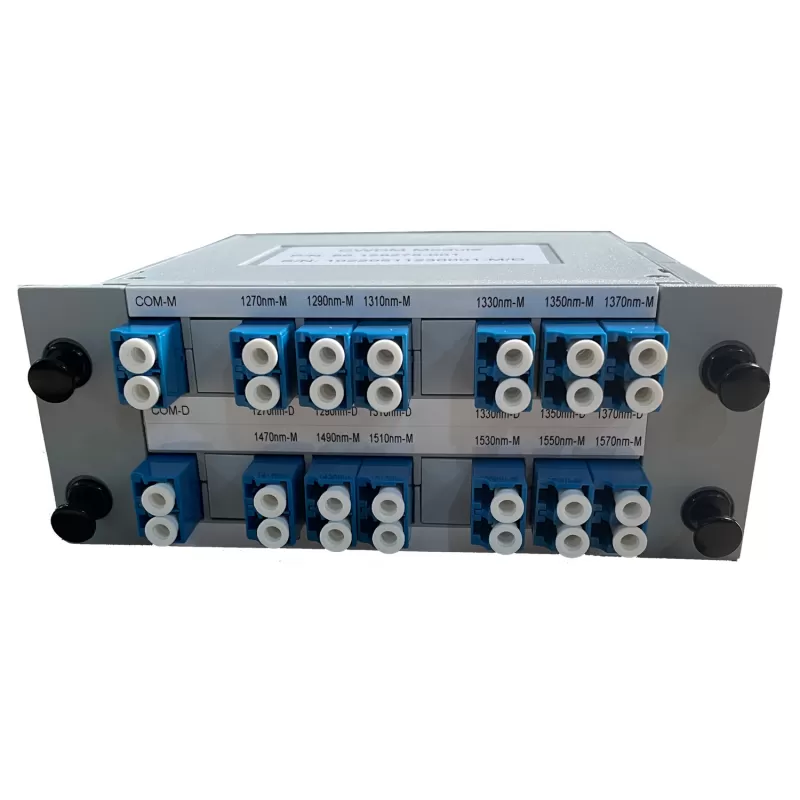

Corresponding diagram of fiber output and color label of insert box panel：

12 Channel LGX Dual Fiber CWDM MUX/DEMUX modules

Mechanical Dimensions

12 Channel LGX Dual Fiber CWDM MUX/DEMUX modules

Parameters		Specifications	Unit
Operating Wavelength		1260~1620	nm
Channel		1271~1371,1471~1571	nm
Channel Spaceing		20	nm
（@-0.5dB）/Channel Passband(@-0.5dB bandwidth)		ITU±6.5	nm
Center wavelength deviation (nm)		<1.0	nm
1/Insertion Loss1	Wavelenths of Chanel	1271~1371,1471~1571	nm
	Mux	<3.2	dB
	Demux	<3.2	dB
	Mux+Demux	<3.8	dB
Isolation	Adjacent	≥30	dB
	Non-adjacent	≥40	dB
Insertion Loss Temperature Sensitivity		≤0.5	dB
Polarization Dependent Loss		≤0.15	dB
Polarization Mode Dispersion		≤0.2	ps
Ripple		≤0.5	dB
Directivity		≥50	dB
Return Loss		≥45	dB
Maximum Power Handing		300	mW
Operating Temperature		-10~+70	℃
Storage Temperature		-40~+85	℃
Fiber Type		G657A1	/
Connector		LC/UPC	/
Package size		130×100×50	mm
