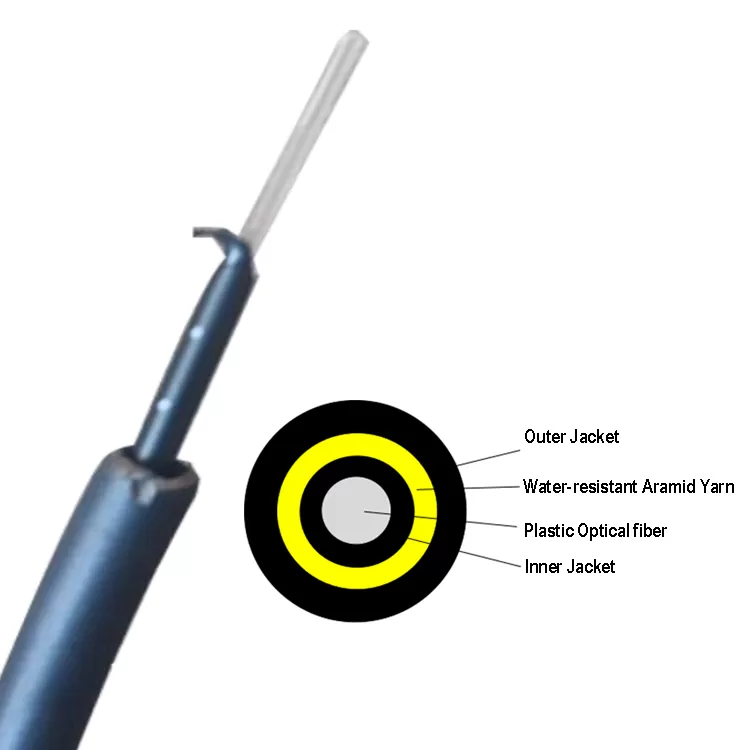

5.0 Single Core Circular Double Sheath Plastic Optical Fiber
Plastic Optical Fiber
Plastic Optical Fiber

5.0 Single Core Circular Double Sheath Plastic Optical Fiber

Model Number: Plastic Optical Fiber

Core Material: Polymethyl Methacrylate Resin(PMMA)

Cladding Material: Fluorinated Polymer

Core Refractive Index: 1.49 μm

Refractive Index Profile: Step Index

Numerical Aperture: 0.5

Core Diameter: 980 μm

Overall Diameter: 1000 μm

share:

Inquire Now Next Product
Description Contact Us

Fiber Parameters

No.
Items
Unit
Specification
1
Core Material
μm
Polymethyl Methacrylate Resin(PMMA)
2
Cladding Material
%
Fluorinated Polymer
3
Core Refractive Index
μm
1.49
4
Refractive Index Profile
μm
Step Index
5
Numerical Aperture
%
0.5
6
Core Diameter
μm
980
7
Overall Diameter
μm
1000
8
Transmission Loss
650nm
dB/km
≤150

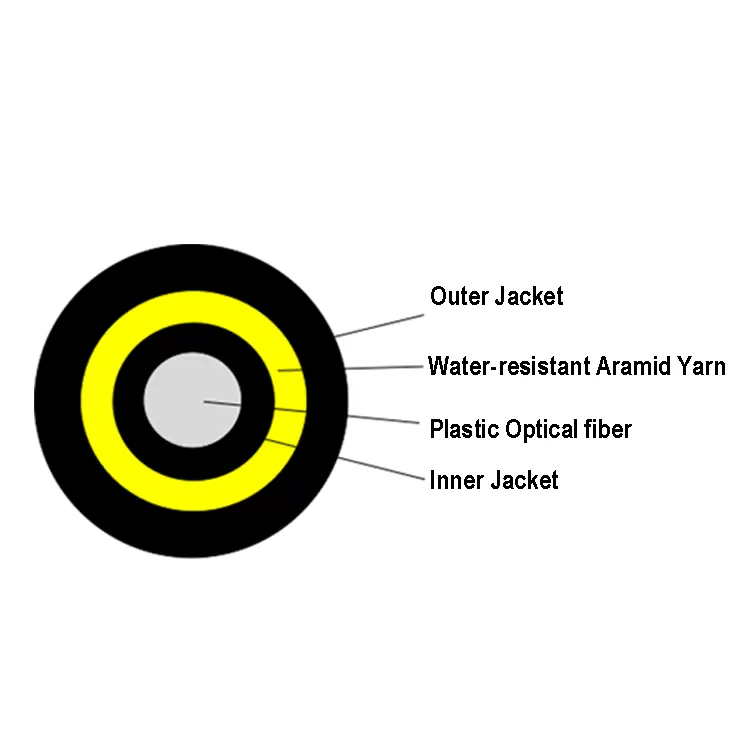

Cable Parameters

Items
Specifications
Fiber count
1
Inner Jacket
Diameter
1.9±0.1 mm

Material
PE

Color
Black
Outer Jacket
Diameter
4.8±0.2mm

Material
LSZH

Color
Black

Strength member
Aramid Yarn

Mechanical and Environmental Characteristics

Items
Unite
Specifications
Tension(Long Term)
N
150
Tension (Short Term)
N
300
Crush（Long Term）
N/10cm
200
Crush（Short Term）
N/10cm
1000
Min. Bend Radius（Dynamic）
mm
20D
Min. Bend Radius（Static）
mm
10D
Operating Temperature
℃
-20～+60
Storage Temperature
℃
-20～+60
