Model Number: LC Armored Fiber Optic Patch Cord
Application: FTTA , Base-station
No of fiber core: 2cores(2 fibers) /12 cores(12 fibers)
Fiber Mode: Single mode: G657A1 9/125µm
Cable Diameter: 5.0mm with Armored
Cable Sheath Material: Normal LSZH(Low Smoke Zero Halogen)
Cable Type/Branch Type: Armored SUS204
Connector Type: LC/ UPC duplex 2.0mm connector
Insertion Loss: <= 0.2 db
Return Loss: >= 50 db
Description：

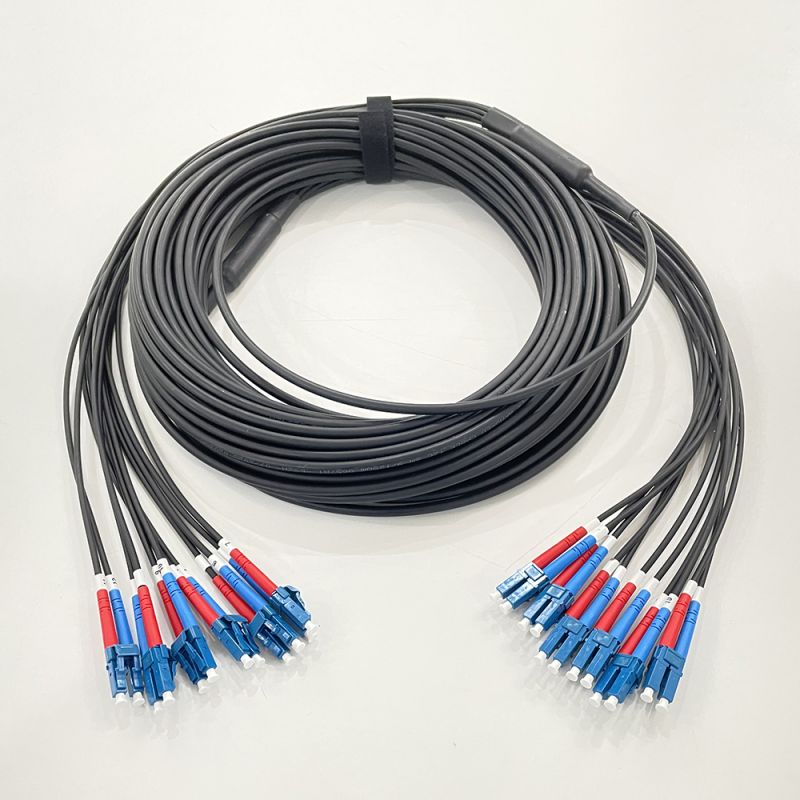

LC Multifiber Fanout Armored Fiber Optic Patch Cord, this pre-terminated fiber optic solution is designed for high-density, high-reliability environments and can solve complex cable compression and bending problems under data center raised floors.The unique armor design provides excellent protection against compression, crushing, and rodents, ensuring long-term durability in harsh scenarios such as data centers and industrial environments.

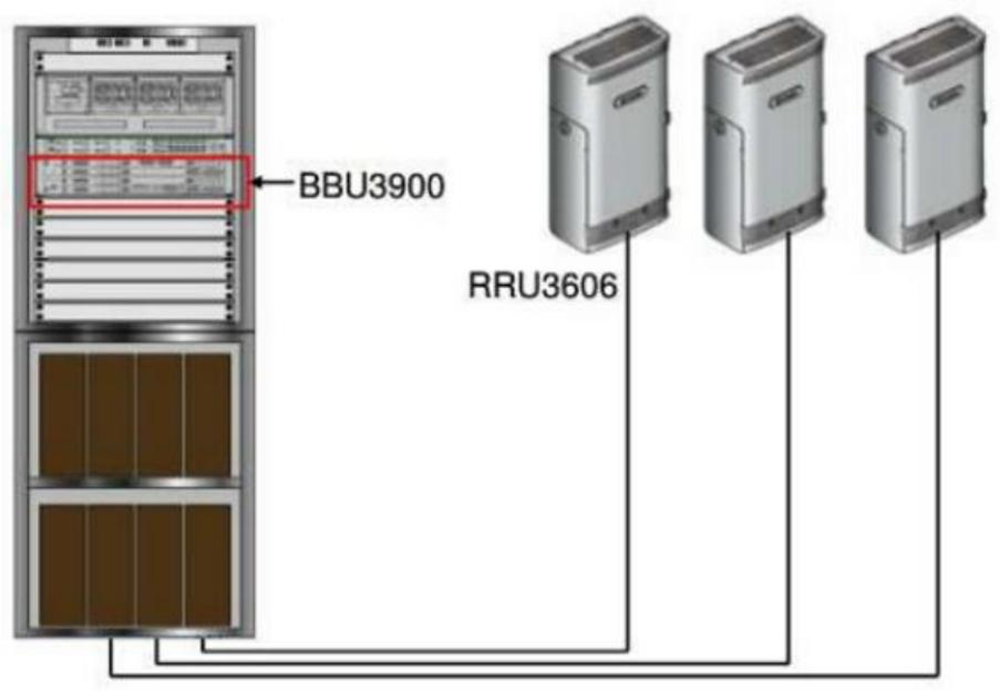

In 3G/4G/5G communication network,base-station is applied more and more, building Base Band Unit (BBU) connects Radio Remote Unit (RRU) etc. base station equipment is used for duplex and multi-core indoor/outdoor Armored Fiber Patch Cable. Every termination through rigorous parameter test to ensure the highest in network, it is the leading solution for harsh environment.

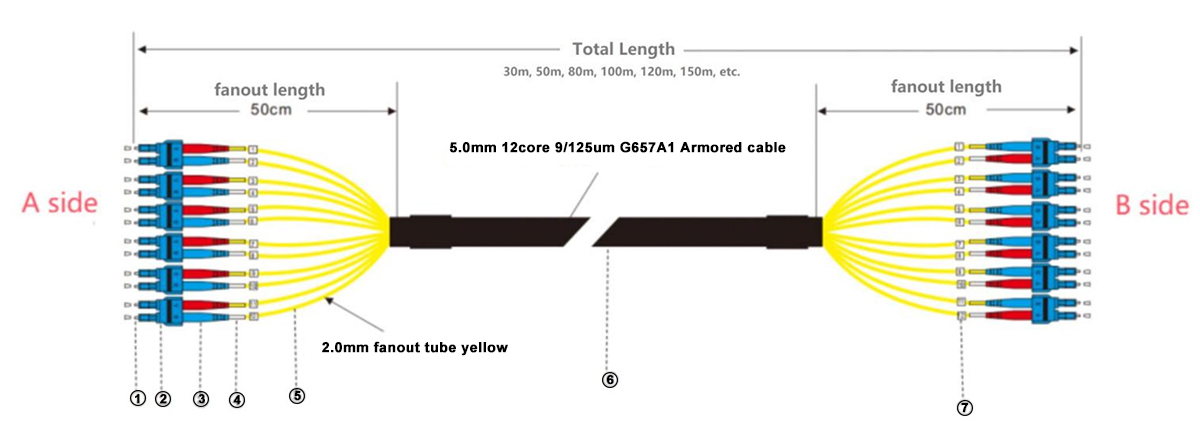

12 cores (12 fibers)
1 LC/ UPC 1.25mm SM 1.0um concentricity ferrule

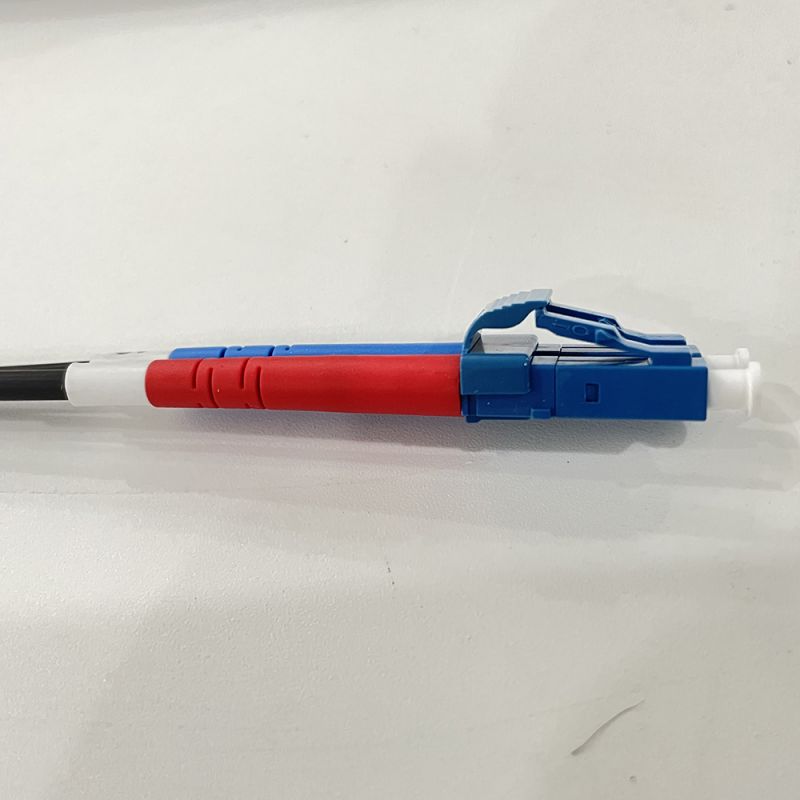

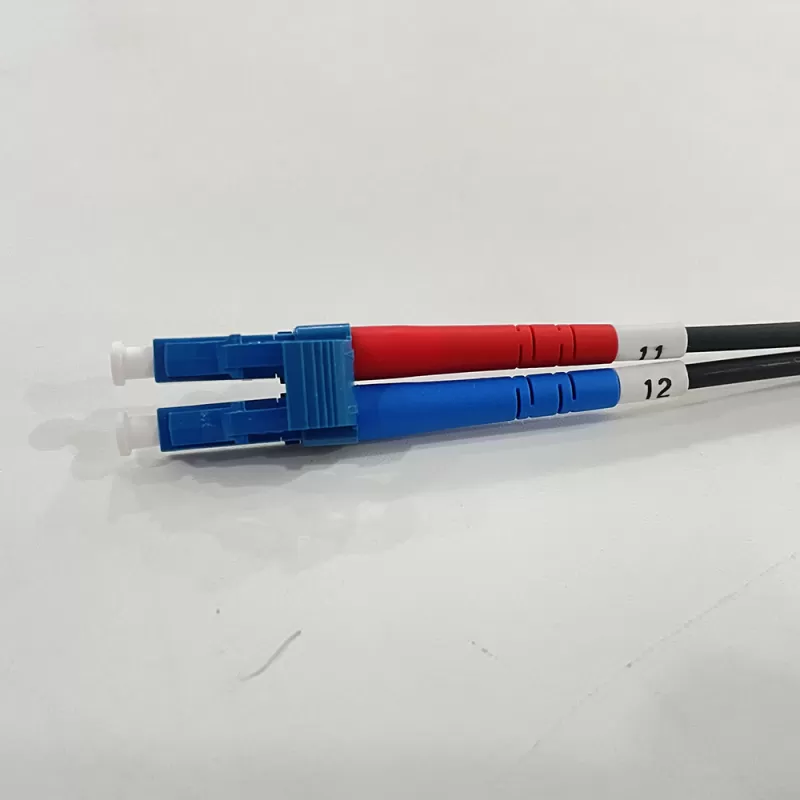

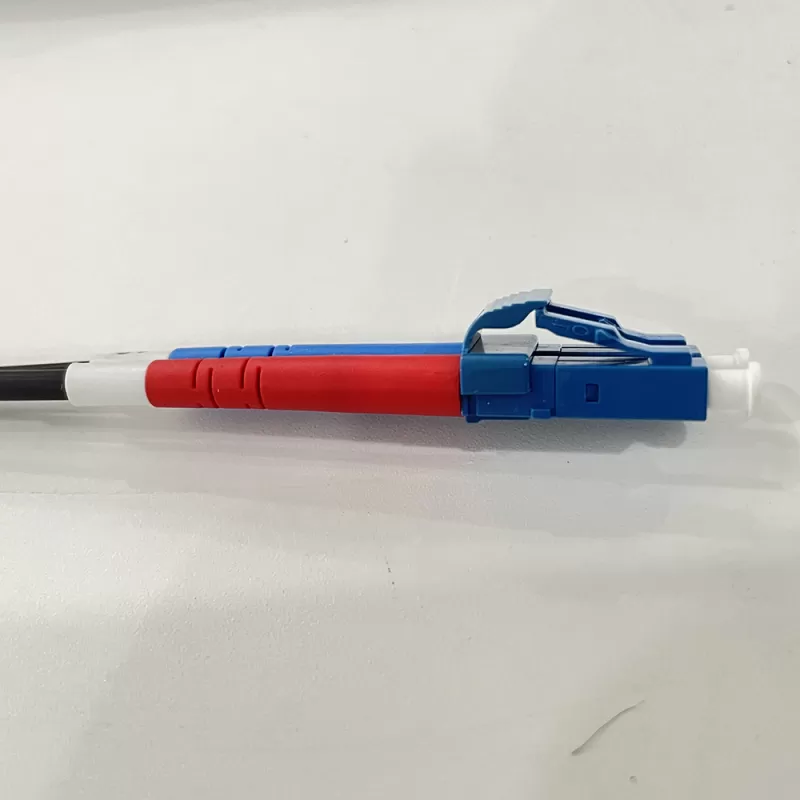

2 LC/ UPC duplex 2.0mm connector
3 LC 2.0mm blue/red boot (single mode boot color options: white/black/green)
4 2.0mm yellow/white heat shrink tube
5 Fanout 2.0mm yellow 50cm length
*Color offanout tube options: black/green/blue/white
*Please specify if protection with Armored is needed for fanout
6 5.0mm OD Armored Main cable
7 2.0mm cable marker(1,2,3....12) --Identification channel.

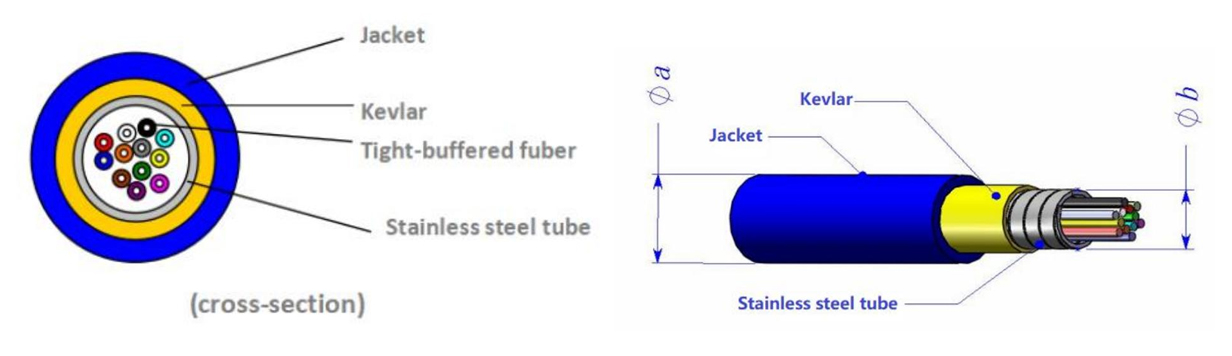

Armored Cable(12-fibers as sample)
Sectional View
Features:
---IP65 protection,salt-mist proof
---Easy,reliable and cost-effective installation
---Thread structure guarantees the trusted connection
---High temperature stability
---Standard: TelcordiaGR-326-CORE
Applications:
---Telecommunication networks
---2/3/4/5G Base station equipment
---Data processing networks
---Distributed network
---Outdoor base station connection
| No of fiber core | 12 cores(12 fibers) |
| Fiber Mode | Single mode: G657A1 9/125µm * Fiber Mode Options: SM 9/125(G652D/G657A1/G655/G657B)MM 50/125 (OM1/OM2/OM3/OM4/OM5) |
| Connector Type | A End: LC/ UPC duplex 2.0mm connector |
| B End: LC/ UPC duplex 2.0mm connector | |
| Connector Ferrule | LC 1.0um concentricity Zirconia Ceramic |
| Polarity（2） | Type B |
| Insertion Loss | <= 0.2 db |
| Return Loss | >= 50 db |
| Wavelength | 1310nm or 1550nm |
| Cable Sheath Material | Normal LSZH(Low Smoke Zero Halogen) * Please specify if Flame retardant is needed for LSZH *Option:PVC, TPU, ETFE or other contracted material |
| Cable Type/Branch Type | Armored SUS204 *Option: SUS304 |
| Strength member | Kevlar |
| Cable Jackets color | Black *Color Options: blue/yellow/grey etc * Please specify if other color is needed |
| Connectors color | SM:LC blue housing,red and blut boot |
| Cable Diameter | 5.0mm with Armored |
| Fanout | 2.0mm 50cm *Fanout length options: 20cm~200cm * Fanout length can be customized according to the requirement |
| Patch cord length | 3M~150M * Patch cord length can be customized according to the requirement |
| Patch cord code | 1413064 WT03M/03~150M * Patch cord code will label on the cable |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
