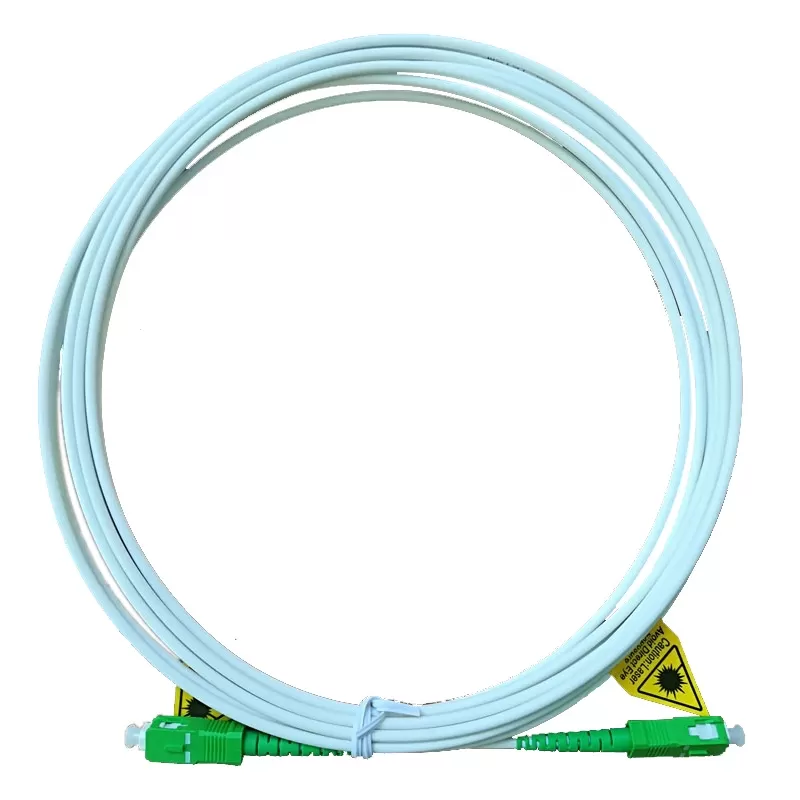

FTTH Single Mode Simplex SC APC LSZH 3.0mm Armored Fiber Optic Patch Cord

Wirenet's SC APC armored fiber optic patch cord is a high-performance, high-reliability fiber optic connection component designed for harsh environments. Armored fiber optic cables with built-in metal armor provide stronger protection than standard fiber optic cables.This robust and durable armored cable allows fiber optic cables to be installed in the most hazardous areas, including environments with small amounts of dust, oil, gas, humidity, and even harmful substances such as rodents and pests. It is suitable for industrial, military, data center, and outdoor applications, and is particularly suitable for applications susceptible to compression, bending, or abrasion.

Cable specification

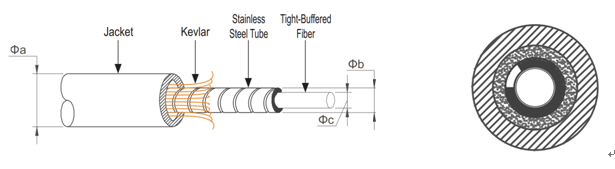

Profile View

Technical Parameter

Construction
Fiber Count（1）	1fibers（simplex）
Fiber Mode	Single mode: G.652D 9/125µm
Connector Type End A	SC/APC simplex 3mm connector
Connector Type End B	SC/APC simplex 3mm connector
Connector Ferrule	Zirconia Ceramic
Polarity（2）	Type B,
Cable Jacket ratings	LSZH
Cable Type	Simplex Armoured 3.0mm
Cable Jackets color	Yellow
Connectors color	OS2:Green housing,Green boot
Cable Diameter	3.0mm
Temperature	-20°C to +70°C

Optical Properties:

Features:

1.Excellent optical performance

* APC bevel polishing (8° angle design), return loss ≥65dB, effectively reducing reflected light interference, suitable for high-precision transmission scenarios (such as FTTH, CATV, 5G networks).

* Low insertion loss (≤0.3dB) to ensure signal transmission stability.

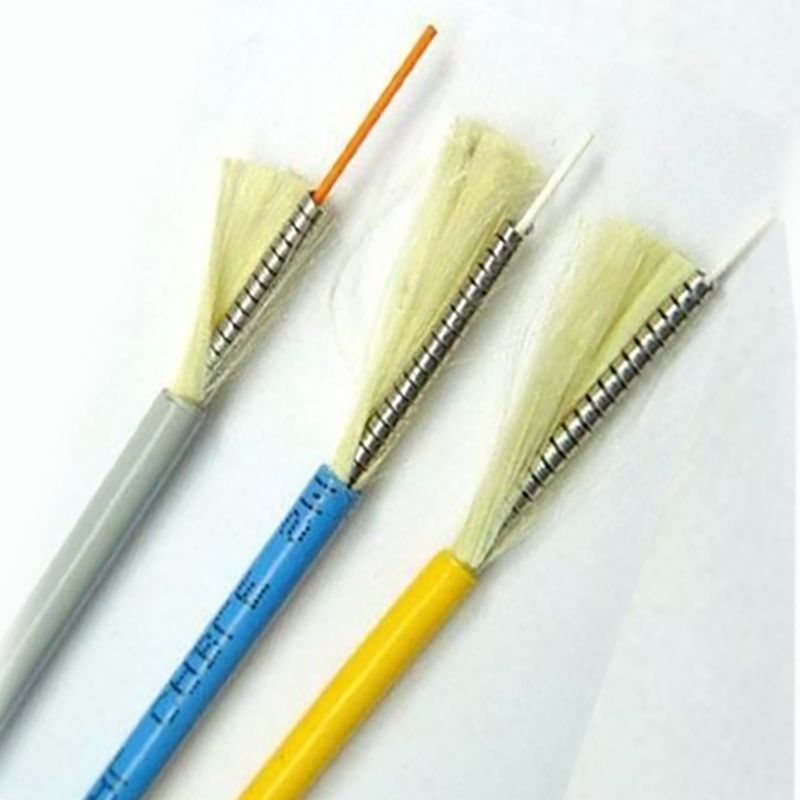

2.High-strength armor protection

* Stainless steel hose or aramid fiber armor layer, tensile, compression, and kink resistance, protection level up to IP67, adaptable to harsh environments (such as mines, oil fields, and field wiring).

3.Durable connector design

* SC connector ceramic ferrule, high-precision docking, plug-in and unplug times ≥1000 times.

* APC green connector logo, easy to distinguish from UPC (blue) to prevent mis-insertion.

4.Flexible adaptability

* Optional single-mode (SM, G.652D/G.657A1) or multi-mode (OM1/OM2/OM3) fiber types.

* Customized length (0.5m~50m) to meet different wiring needs.

5.Environmental adaptability

* Working temperature: -40℃ ~ +85℃, fire protection level complies with IEC 60332/UL94 standards.

Application:

* Industrial automation: Anti-interference connection of factory robots and PLC control systems.

* Telecommunications network: High-density wiring of base stations and optical distribution frames (ODFs).

* Military security: Anti-destruction transmission of field communications and monitoring systems.

* Data center: Reliable interconnection between servers and switches.
