Armored Fiber optic patch cord Single Mode G.652D SC/APC to SC/APC (standard) Simplex 3.0mm LSZH jacket

Wirenet's SC APC armored fiber optic patch cord is a high-performance, high-reliability fiber optic connection component designed for harsh environments. The armored structure provides additional mechanical protection and is suitable for industrial, military, data center and outdoor applications that are prone to extrusion, bending or abrasion.

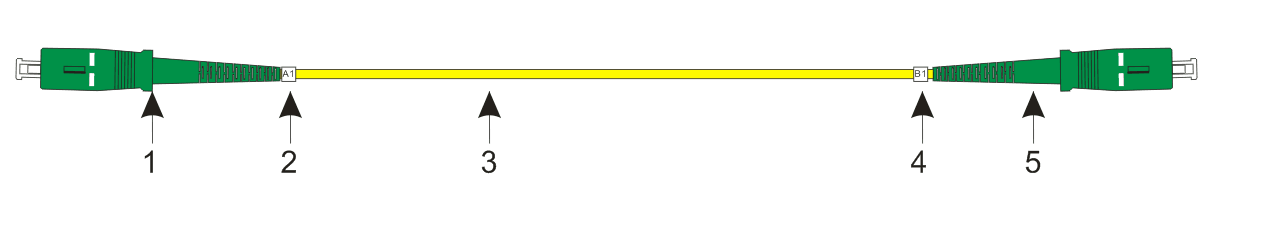

Technical Drawing

Fiber Count（1）

1. SC/APC Simplex 3mm connector (Green housing,Green boot) *1set

2   cable marker A1(A1=B1) *1pcs

3   Armoured Fiber optic cable Simplex 3mm LSZH YEllow color G.652D fiber *5M

4   cable marker B1(A1=B1) *1pcs

5   SC/APC Simplex 3mm connector (Green housing,Green boot) *1set

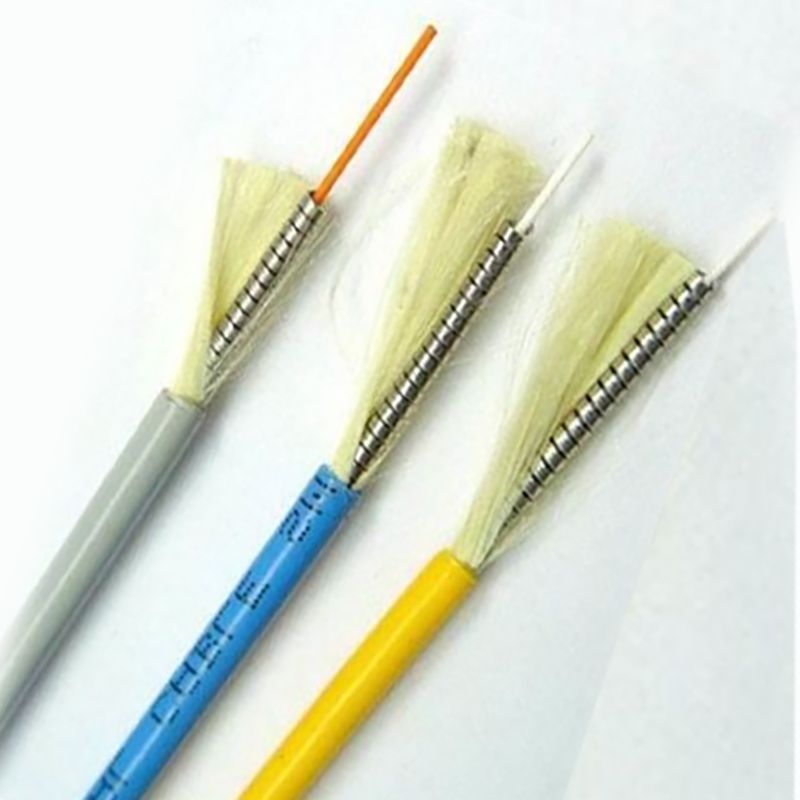

Cable specification

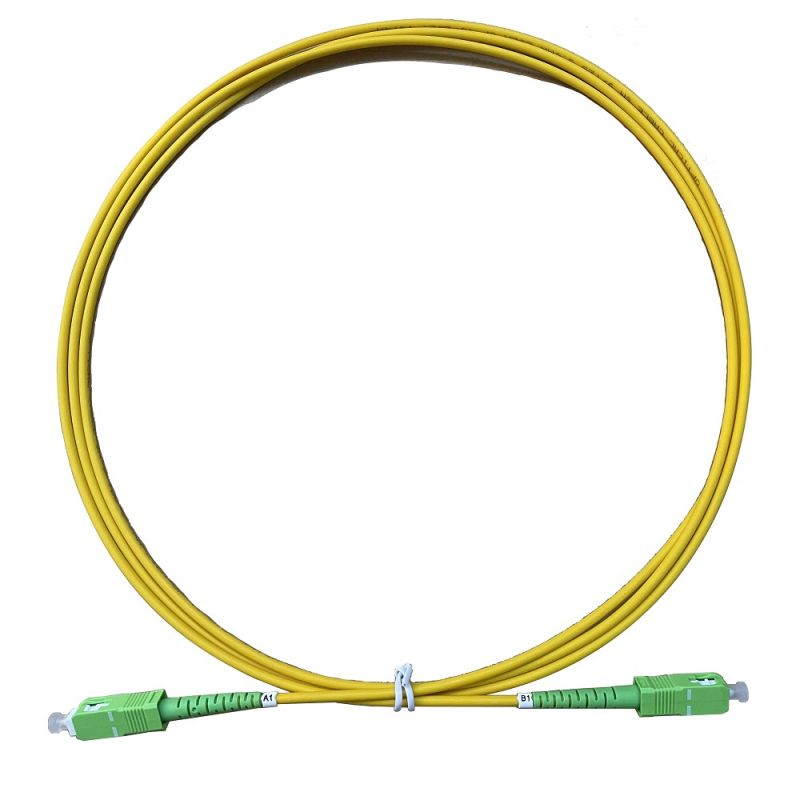

Profile View

Features:

1.Excellent optical performance

* APC bevel polishing (8° angle design), return loss ≥65dB, effectively reducing reflected light interference, suitable for high-precision transmission scenarios (such as FTTH, CATV, 5G networks).

* Low insertion loss (≤0.3dB) to ensure signal transmission stability.

2.High-strength armor protection

* Stainless steel hose or aramid fiber armor layer, tensile, compression, and kink resistance, protection level up to IP67, adaptable to harsh environments (such as mines, oil fields, and field wiring).

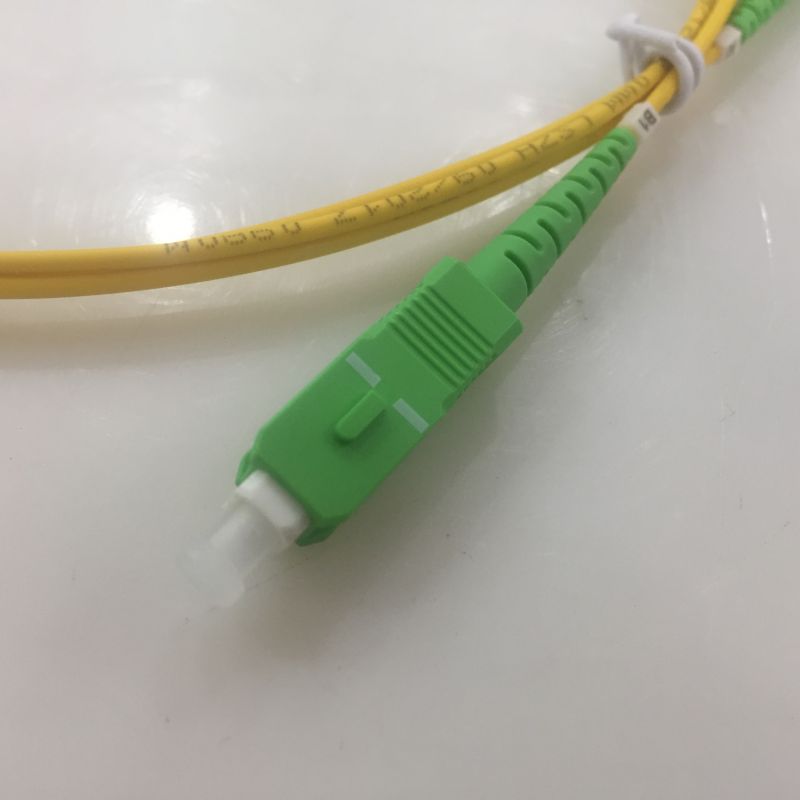

3.Durable connector design

* SC connector ceramic ferrule, high-precision docking, plug-in and unplug times ≥1000 times.

* APC green connector logo, easy to distinguish from UPC (blue) to prevent mis-insertion.

4.Flexible adaptability

* Optional single-mode (SM, G.652D/G.657A1) or multi-mode (OM1/OM2/OM3) fiber types.

* Customized length (0.5m~50m) to meet different wiring needs.

5.Environmental adaptability

* Working temperature: -40℃ ~ +85℃, fire protection level complies with IEC 60332/UL94 standards.

Applications:

* Industrial automation: Anti-interference connection of factory robots and PLC control systems.

* Telecommunications network: High-density wiring of base stations and optical distribution frames (ODFs).

* Military security: Anti-destruction transmission of field communications and monitoring systems.

* Data center: Reliable interconnection between servers and switches.

Product Specifications：

Construction
Fiber Count（1）	1fibers（simplex）
Fiber Mode	Single mode: G.652D 9/125µm
Connector Type End A	SC/APC simplex 3mm connector
Connector Type End B	SC/APC simplex 3mm connector
Connector Ferrule	Zirconia Ceramic
Polarity（2）	Type B,
Cable Jacket ratings	LSZH
Cable Type	Simplex Armoured 3.0mm
Cable Jackets color	Yellow
Connectors color	OS2:Green housing,Green boot
Cable Diameter	3.0mm
Temperature	-20°C to +70°C

Optical Properties:
