Duplex Zipcord Indoor Armored Fiber Optic Cable is an all-rounder for indoor fiber optic cabling. It cleverly combines duplex functionality, easy installation, and robust physical protection. For environments requiring high density, high reliability, and rapid deployment, such as data centers and server rooms, it is the preferred or even standard solution for device interconnect patch cords, providing top-level protection while greatly simplifying installation and maintenance.

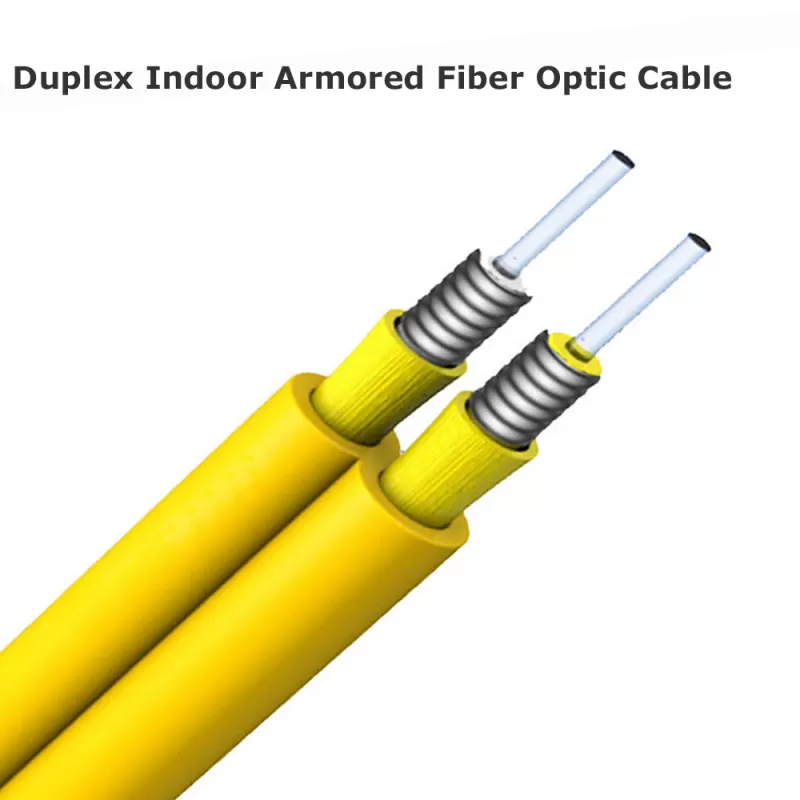

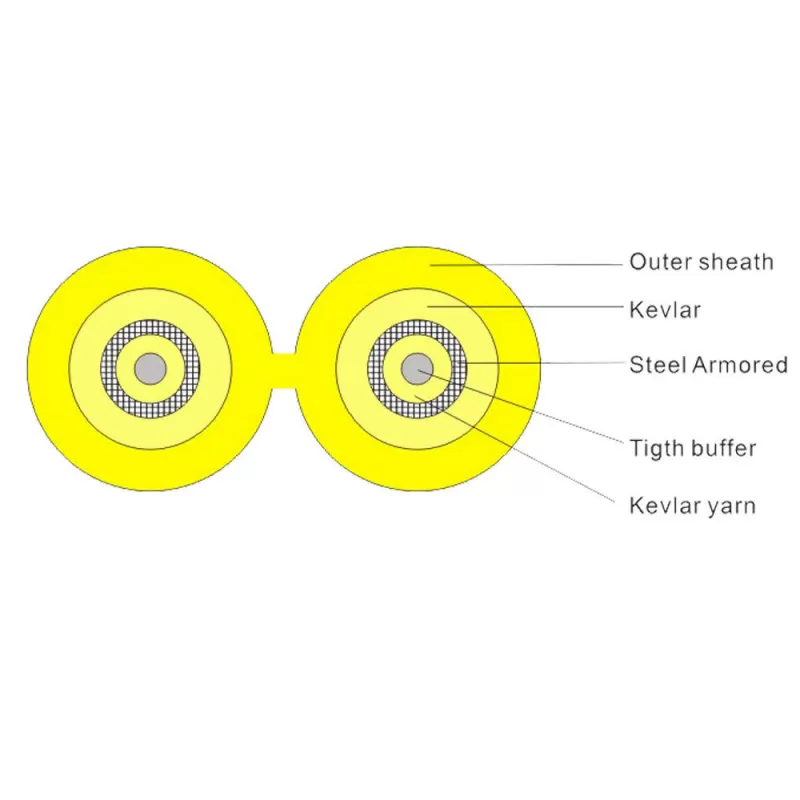

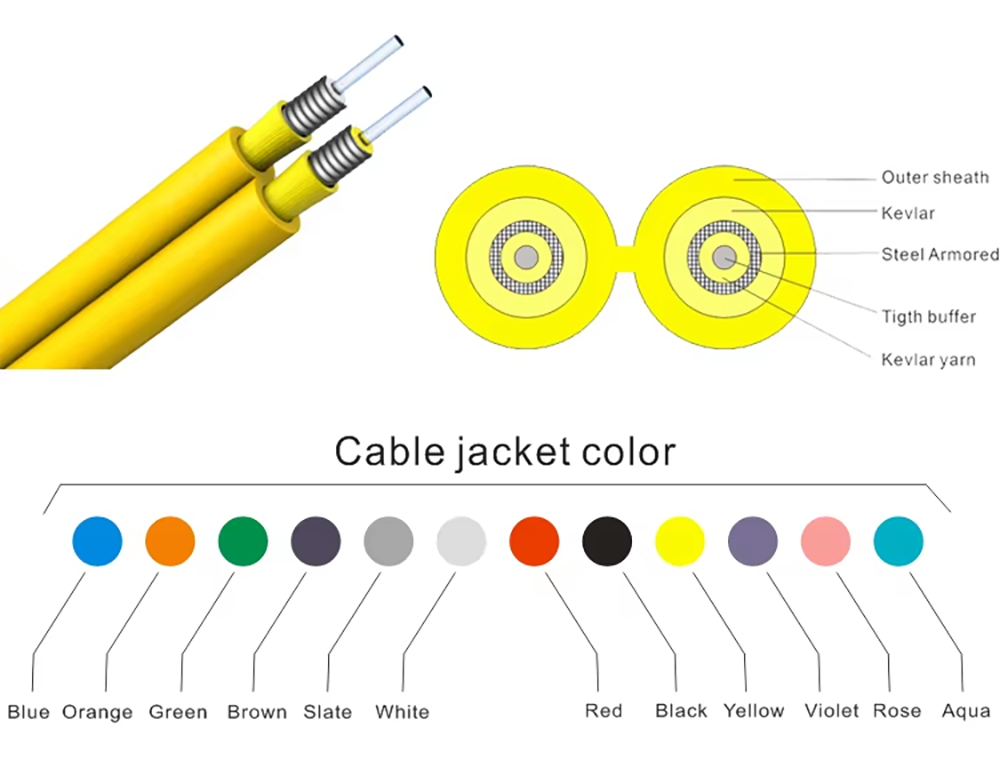

Duplex Zipcord indoor armored fiber optic cable indoor armored optical cable is an indoor optical cable that integrates convenience, full-duplex connection function, and high physical protection. It consists of two tight-buffered buffered optical fibers "bonded" together side by side, wrapped with aramid reinforcement and a metal armor layer, and finally covered with a flame-retardant sheath. Its "zipper" design makes termination and installation very flexible and convenient.
Features
* Extremely Convenient Installation and Termination:
The "zipper" design allows for easy field separation of two optical fibers to the required length, facilitating the fabrication of individual connectors or connection to different ports on patch panels without the need for cumbersome branching devices.
* Plug-and-Play Full-Duplex Link:
Naturally forms a standard transmit/receive pair, ideal for patch cords and short-distance connections within server racks.
* Superior Flexibility and Durability:
The braided armor provides robust protection while maintaining excellent cable flexibility, making it easier to bend and lay in confined spaces than traditional steel-tape armored cables.
* Strong Physical Protection:
Effectively prevents damage from trampling, squeezing, micro-bending losses from overly tight cable ties, and rodent bites, significantly improving reliability in high-risk areas such as under data center floors and behind server racks.
* Lightweight:
Lighter than outdoor metal-armored cables, suitable for indoor overhead or horizontal cabling.
* Safety and Compliance:
The LSZH sheath meets stringent indoor fire safety standards.
Application
* Data Centers:
1. Connections between servers and top-of-rack switches.
2. Patch cables between switches and patch panels.
3. Critical links requiring resistance to stress and tangled cable management under raised floors or in overhead cable trays.
* Enterprise Networks and Smart Buildings:
1. Horizontal cabling between floor distribution rooms and office fiber optic points.
2. Interconnect patch cables between core switches and aggregation switches.
3. Rodent-proof server rooms or shaft environments.
Industrial and Security Systems:
1. Connections between control equipment in factory workshops requiring resistance to vibration and accidental shocks.
2. Connections between high-definition video surveillance cameras and aggregation points requiring rodent and trampling protection.
3. Any indoor short-range scenario requiring high-reliability full-duplex connections.
