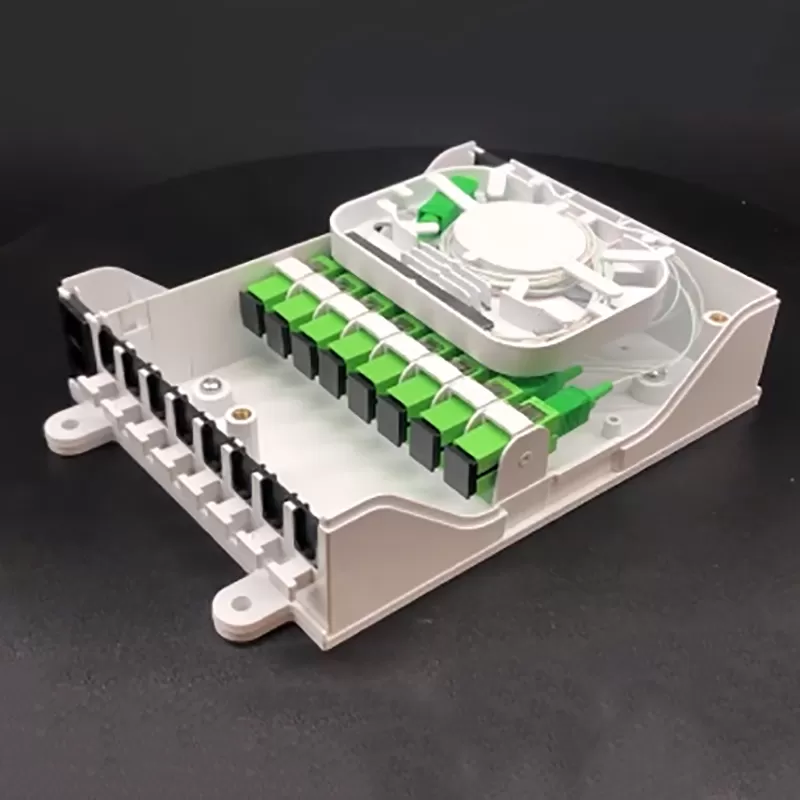

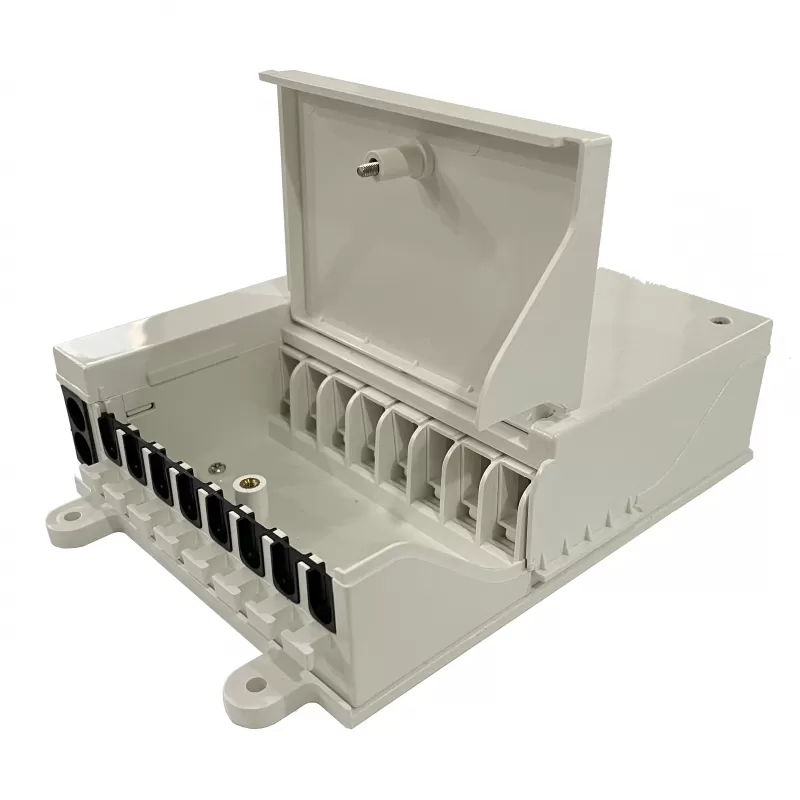

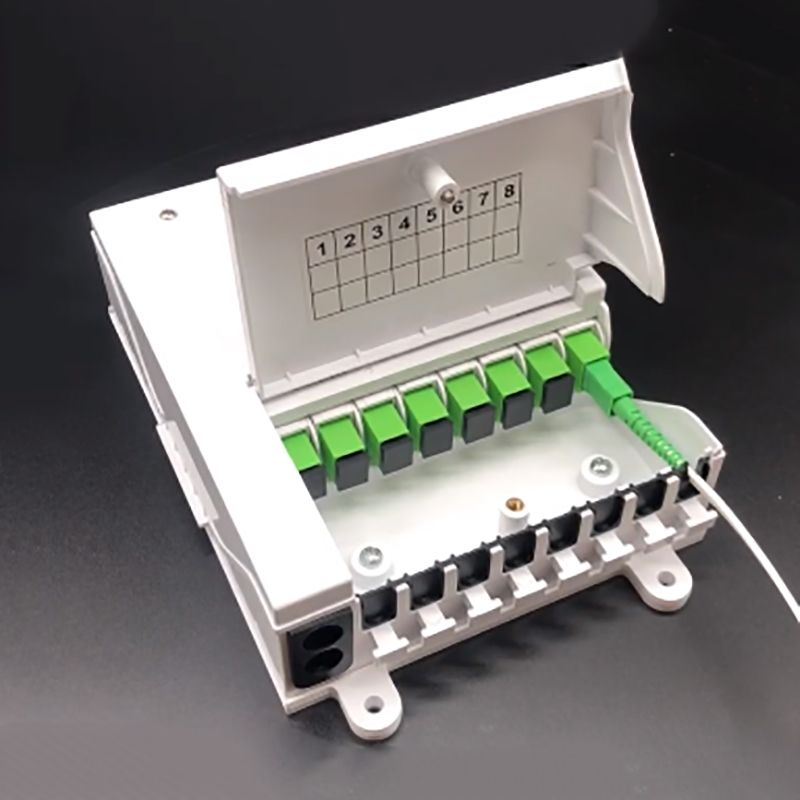

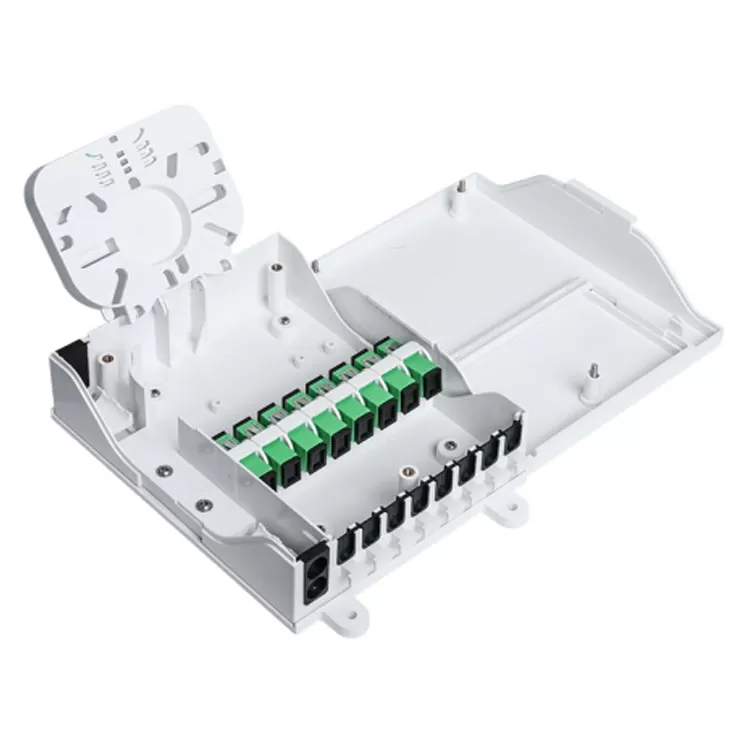

Indoor 8 port FTTH ATB fiber optic access terminal box for the FTTx network building

Model Number: WT-FAT-0208T

Material: PC +ABS

Adapter Capacity: 8 fibers with SC simplex adapters

Capacity: 8cores(1tray*8fibers) Fused/8cores adaptor

Installation: Wall Mounted

Splitter Type: 1:8 Mini PLC *1pcs

Drop Cable (Flat): Indoor flat drop cable 2 x 3mm

Weight: 230g(empty)

Dimensions (W*H*D): 190*130*50mm

This 8 port fiber optic access terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Application
* FTTH access network

* Telecommunication network

* CATV networks

* Data communications network

* Local area networks

Specification
* Anti-UV (Ultraviolet)

* Multi-layer flip design, compact structure.

* Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

* Box can be installed by the way of wall-mounted , suitable for indoor use.

Dimensions (WHD)	19013050mm
Material	PC +ABS
Adapter Capacity	8 fibers with SC simplex adapters
Number of Cable Entrance/Exit	2/08
Capacity	8cores(1tray*8fibers) Fused/8cores adaptor
Installation	Wall Mounted
Splitter Type	1:8 Mini PLC *1pcs
Drop Cable (Flat)	Indoor flat drop cable 2 x 3mm
Drop Cable (Round)	Φ4mm～Φ12mm
Optional Accessories	Adapters, Splitter
Weight	230g（empty）
Color	White

Operation Conditions
Temperature	-40℃ -- 85℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 106kPa

Shipping Information
Package Contents	· Distribution box, 1 unit; Wall mount installation accessories, 1 set ;Nylon cable ties 8pcs Fusion fiber protection tube8pcs
Package Dimensions(WHD)	690210520mm (50pcs)
Material	Carton box
Weight	17kg
