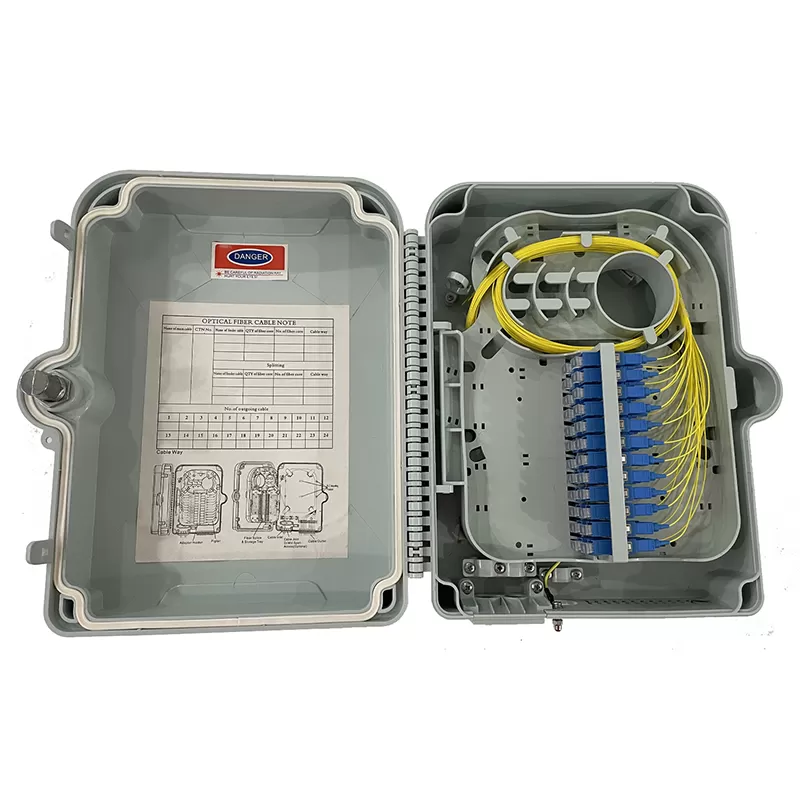

WT-0424A fiber access termination box is able to hold upto 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTT x network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box
Features
* Water-proof design with IP-66 Protection level.

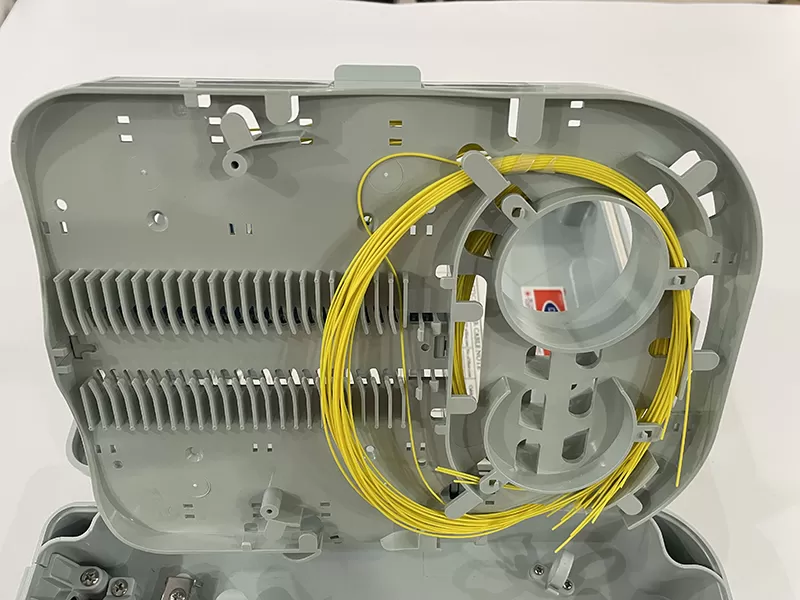

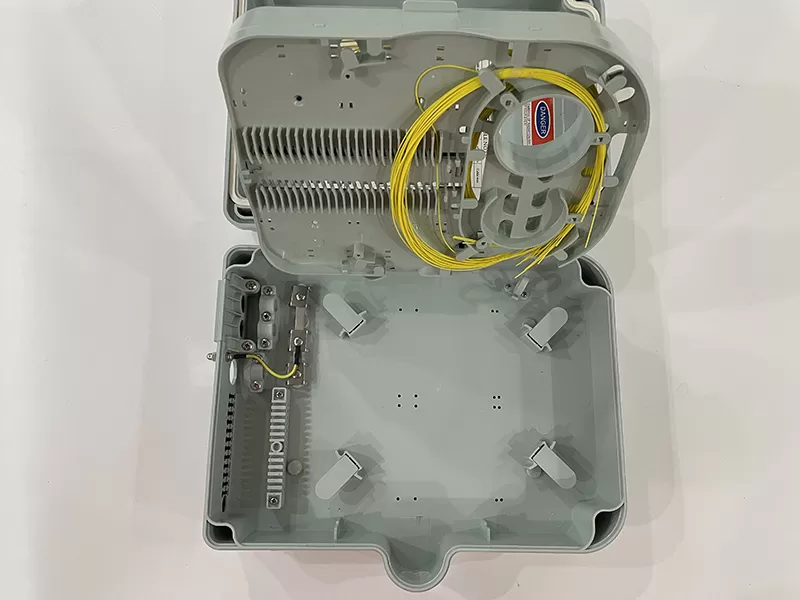

* Integrated with splice cassette and cable management rods.
* Manage fibers in a reasonable fiber radius condition.
* Easy to maintain and extend the capacity.
* Fiber bend radius control more than 40mm.
* Suitable for the fusion splice or mechanical splice.
* 1*8 and 1*16 Splitter can be installed as an option.
* Efficient cable management.

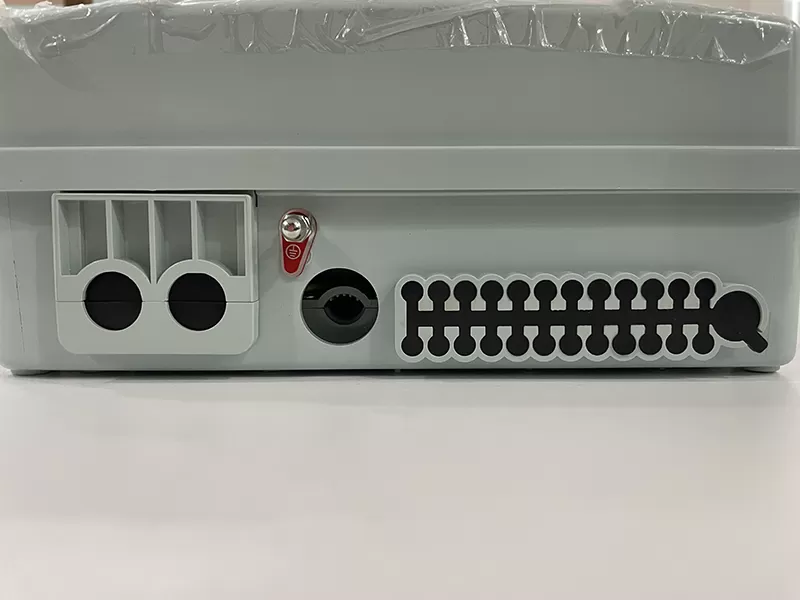

* 24 ports cable entrance for drop cable.
Material | Size | Max Capacity | Installation size | Weight | Color | ||
ABS/PC | A*B*C(MM) 320*240*100 | SC 24 Ports | Box PLC 1x16(SC) | T ube PLC 1x8(SC) | D*E (mm) 206*274 | 1.5kg | Light Gray |
