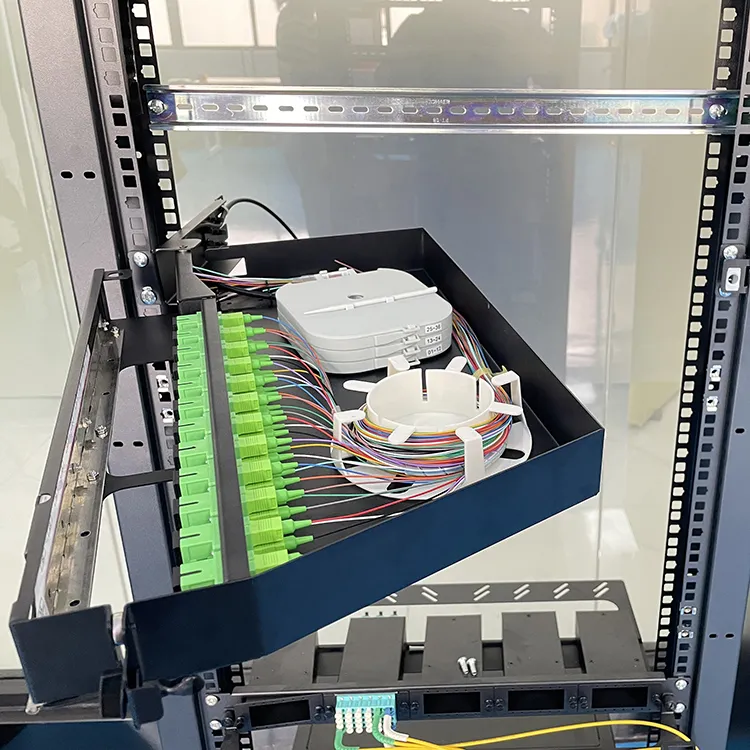

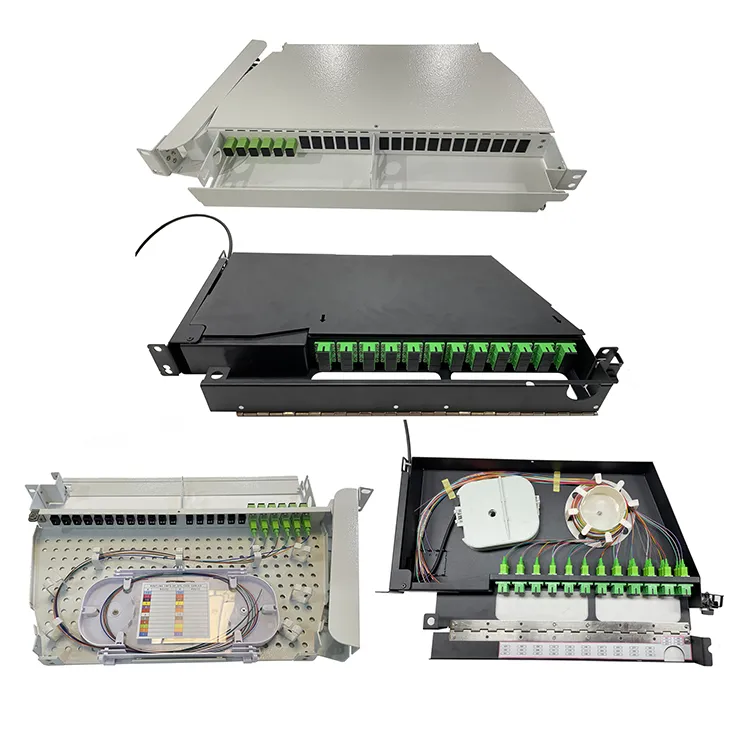

This Left-Rotary Type Fiber Optic Patch Panel (ODF) is a versatile, high-density solution designed to support 12, 24, 36, 48, 72, 96, and up to 144 core terminations. Unlike traditional sliding drawers, the unique left-hinged rotating design allows the entire fiber tray to swing open like a door. This provides direct access to the internal splice trays and pigtails without needing to completely pull out the module, offering excellent protection for the delicate optical fibers while optimizing rack depth usage.
The ODF features a rugged, black powder-coated cold-rolled steel housing.Housed in a durable 19-inch 1U/2U/3U/4U chassis (depending on core count), this ODF comes pre-loaded with premium low-loss SC/APC or SC/UPC adapters and high-capacity splice trays. The rotating mechanism ensures that bend radius is strictly maintained during installation and maintenance, preventing signal attenuation. It is the professional choice for terminating single-mode fibers in central offices and FTTH applications.
Highlights at a glance
✔ Space-Saving Left-Rotary Design (No Pulling Required)

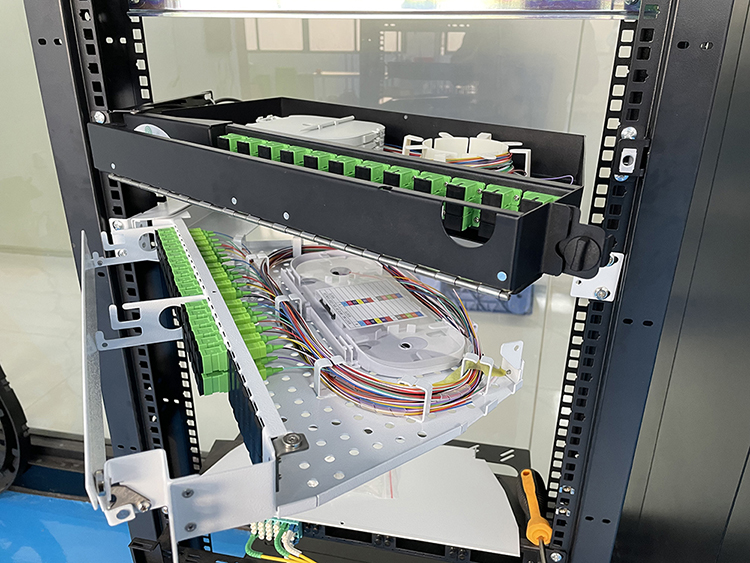

Designed to swing open from the left side, this ODF requires minimal clearance behind the rack. This distinct advantage makes it highly compatible with cabinets that have limited depth, unlike traditional heavy sliding drawers.
✔ Convenient Front/Side Port Access
The hinge mechanism allows the panel to rotate outward. Technicians can perform splicing and cable routing in the "open" position, then gently close it back up. This process is physically lighter and prevents accidental fiber breakage caused by pulling heavy drawers.
✔ Scalable Core Options (12 to 144 Cores)
Whether you need a small 12-core unit for a branch office or a massive 144-core panel for a backbone node, this ODF series offers a unified design across all capacities, simplifying your inventory and installation standards.
✔ Premounted SC/APC Adapters
The factory-installed SC/APC adapters ensure low insertion loss and high return loss for single-mode systems. The green color also helps visually distinguish single-mode connections from multi-mode (beige/blue) in a crowded data center.
✔ Robust Splice & Bend Radius Protection
Includes integrated splice cassettes and routing guides that lock fibers securely in place. This guarantees that pigtails and patch cords never bend below the minimum radius, protecting your network performance long-term.
Specification

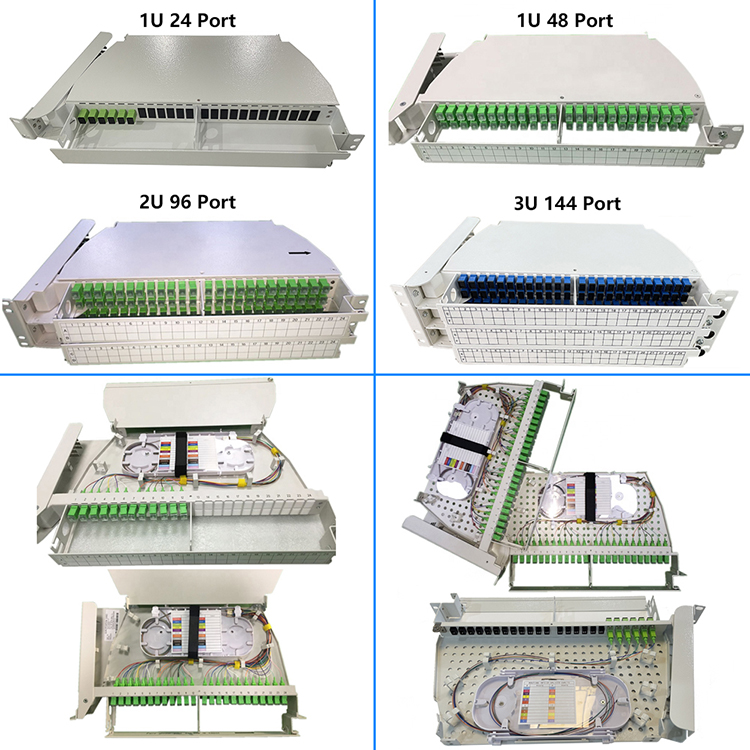

Model | Package Size | Package Weight | Material |
1U 12 Port ODF White | 540*380*60 mm | 2.75kg | Cold-roll steel |
1U 24 Port ODF White | 540*380*60 mm | 2.85kg | Cold-roll steel |
1U 48 Port ODF White | 540*380*60 mm | 3.5kg | Cold-roll steel |
2U 72 Port ODF White | 540*380*120 mm | 6.5kg | Cold-roll steel |
2U 96 Port ODF White | 540*380*120 mm | 6.5kg | Cold-roll steel |
3U 144 Port ODF White | 540*380*150 mm | 9kg | Cold-roll steel |
1U 36 Port ODF Black (Customized) | 540*380*60 mm | 2.9kg | Cold-roll steel |
Application
* Telecom Central Offices (COs) & POPs: Ideal for terminating backbone optical fibers.
* FTTH / FTTB Networks: Great for deployment in optical distribution boxes in fiber-to-the-home projects.
* Data Centers & Server Rooms: Used for high-density fiber management in local area networks (LAN).
* CATV & Broadband Providers: Perfect for headend facilities and termination cabinets.
* Industrial & Enterprise Networks: Reliable fiber termination for industrial control or security monitoring systems.
Other Left-Rotary Fiber Optic Patch Panel
