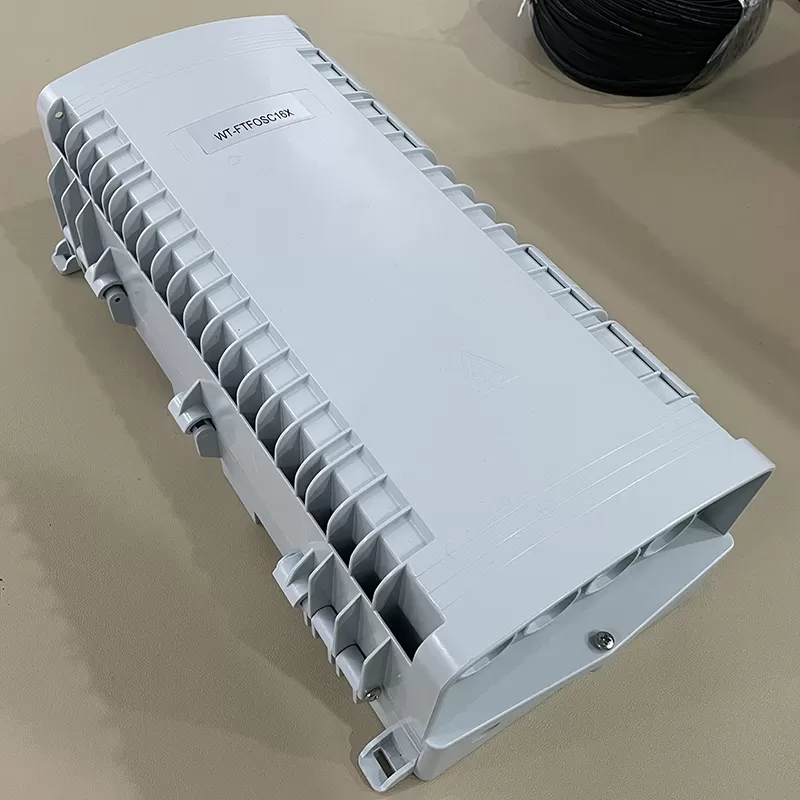

Model Number: WT-FTFOSC16X
Material: PP
IP Rate: IP65

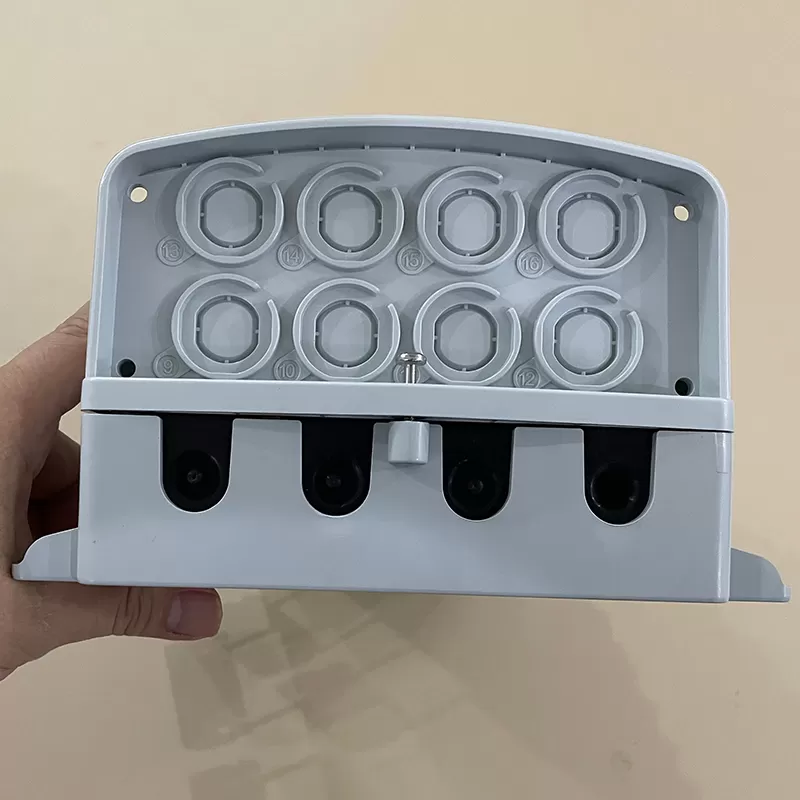

Number of Cable Entrance/Exit: 12/12
Capacity: 160cores
Max cable Diameter: 10mm
No. ofadaptor&Splitter: 16core(FRE-Connection)

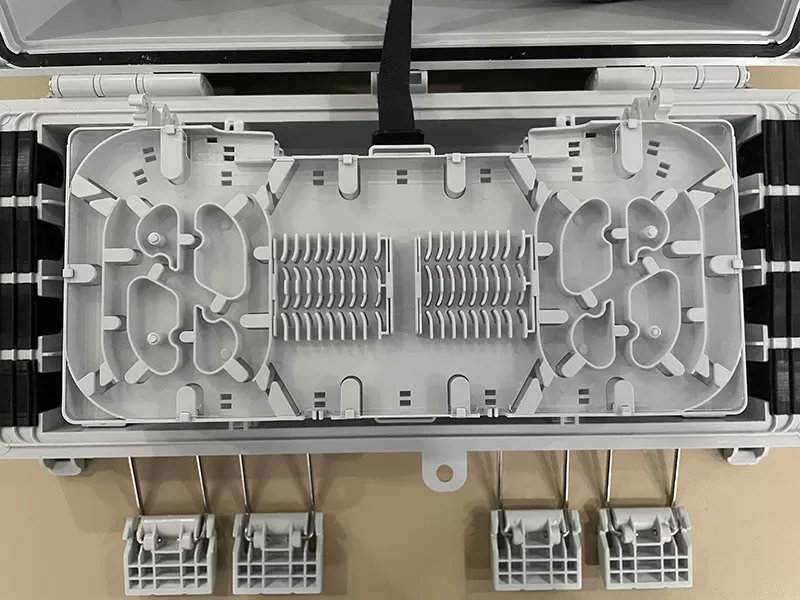

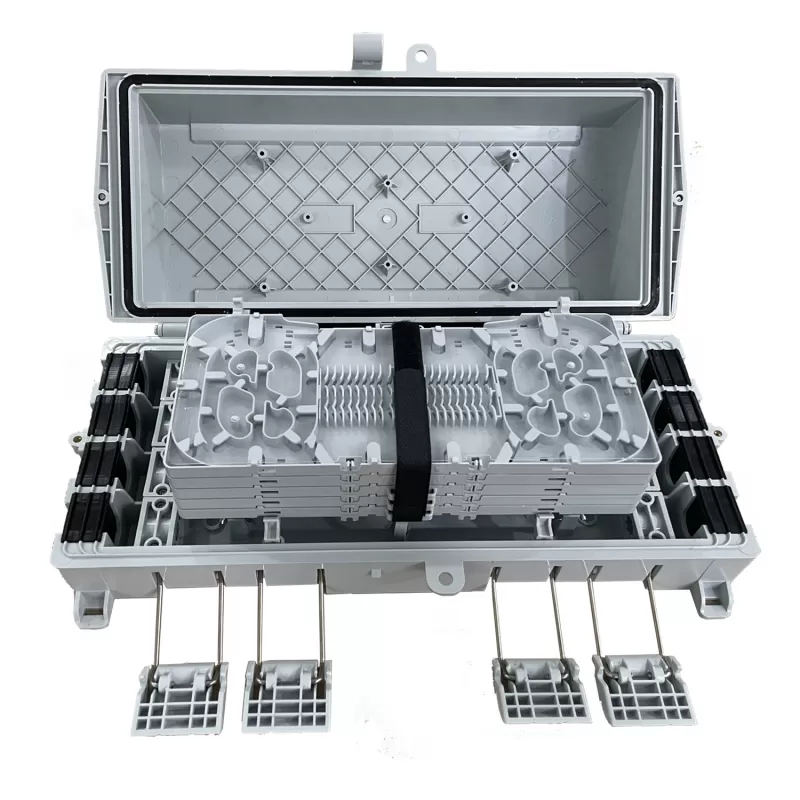

This 16core Fiber Optic joint box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification

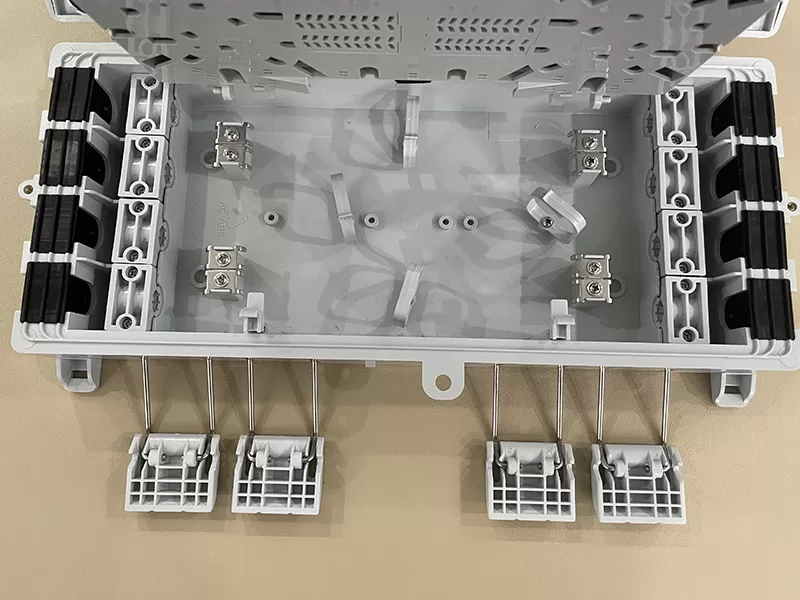

* Total enclosed structure. * Material: PP, wet-proof, water-proof, dust-proof, anti-aging, rotection level up to IP65. * Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,distribution...etc all in one. * Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, asy maintenance.
* Distributionpanel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation. * Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
* Local area networks
Installation
1. Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40,
place the box to match up the holes and use bolt to fasten.
2. Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole
3. The overhead structure
Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.
