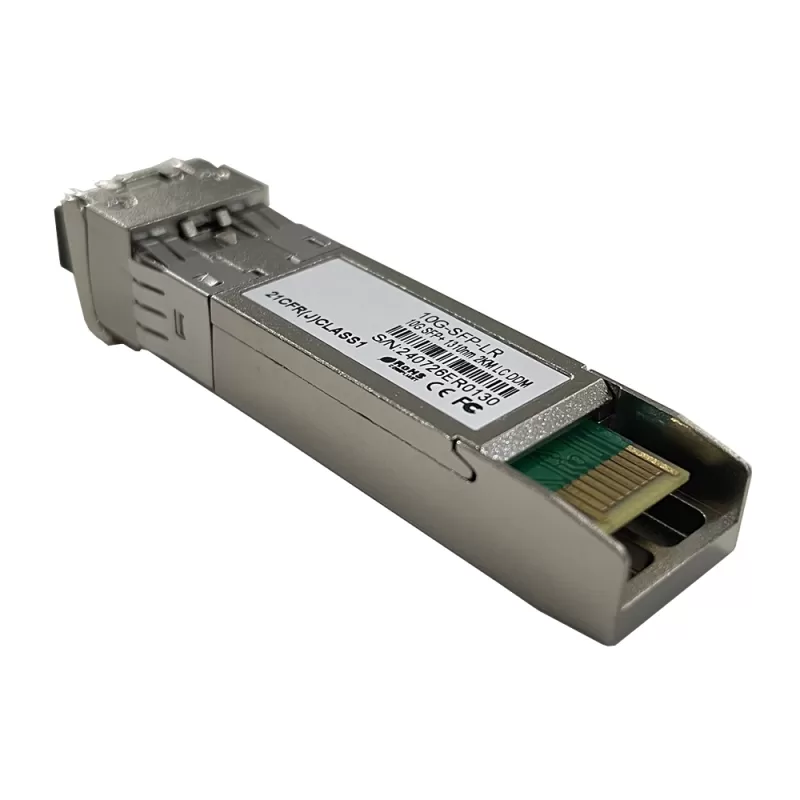

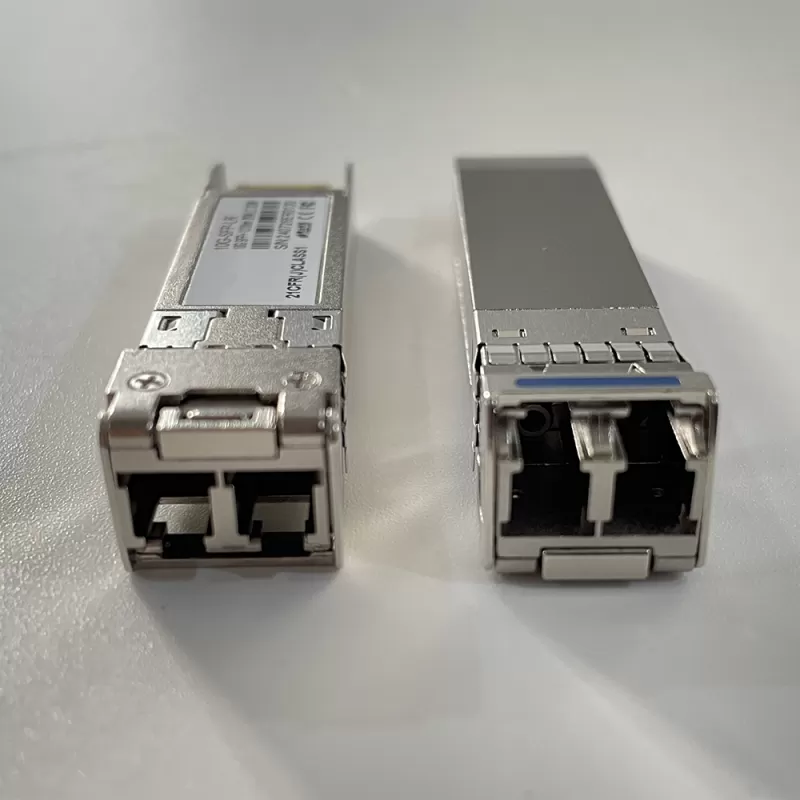

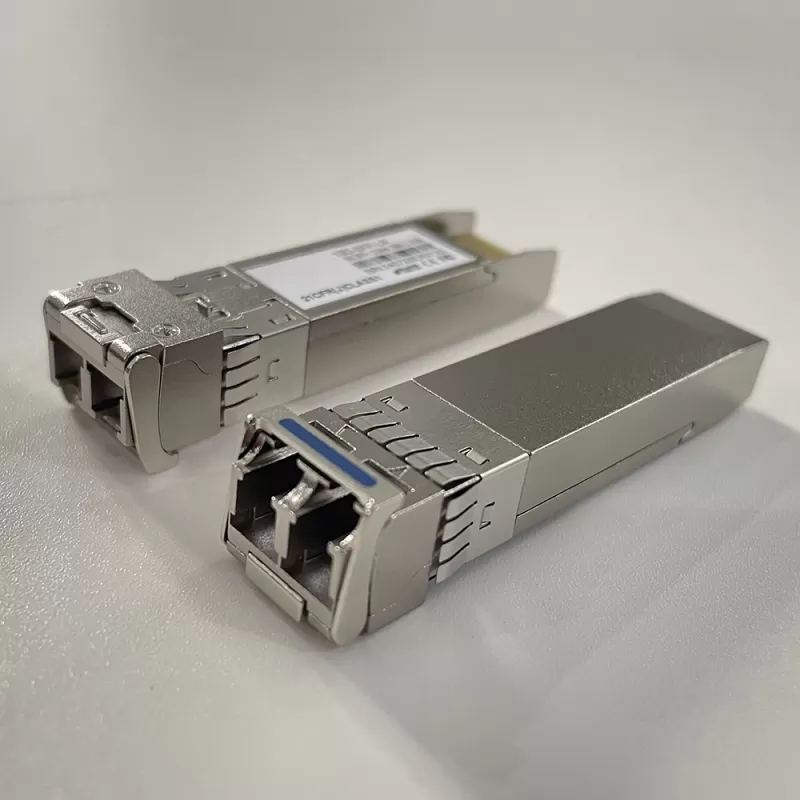

10G BASE SFP+ Single Mode Dual Fiber 1310nm 20Km 40Km LC DDM Fiber Optical Transceiver SFP Module

SFP+ optical modules are high-performance, cost-effective modules that support 10Gbps data rate and 20Km/40Km transmission distance (using multimode fiber (MMF)). The optical module consists of three parts: FP laser transmitter, PIN photodiode with integrated transimpedance preamplifier (TIA), and MCU control unit. All modules meet Class I laser safety requirements. These optical modules are compatible with SFP multi-source agreement and SFF-8472 digital diagnostic functions.

Features

  * Optical interface compliant to IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431
  * Hot Pluggable
  * 1310nm DFB transmitter, PIN photo-detector
  * Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
  * Low power consumption
  * Applicable for 10km or 20km SMF connection
  * All-metal housing for superior EMI performance
  * Advanced firmware allow customer system encryption information to be stored in transceiver
  * Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Application
  * 10GBASE-LR/LW Ethernet
  * SONET OC-192 / SDH
  * 10G Fibre Channel
