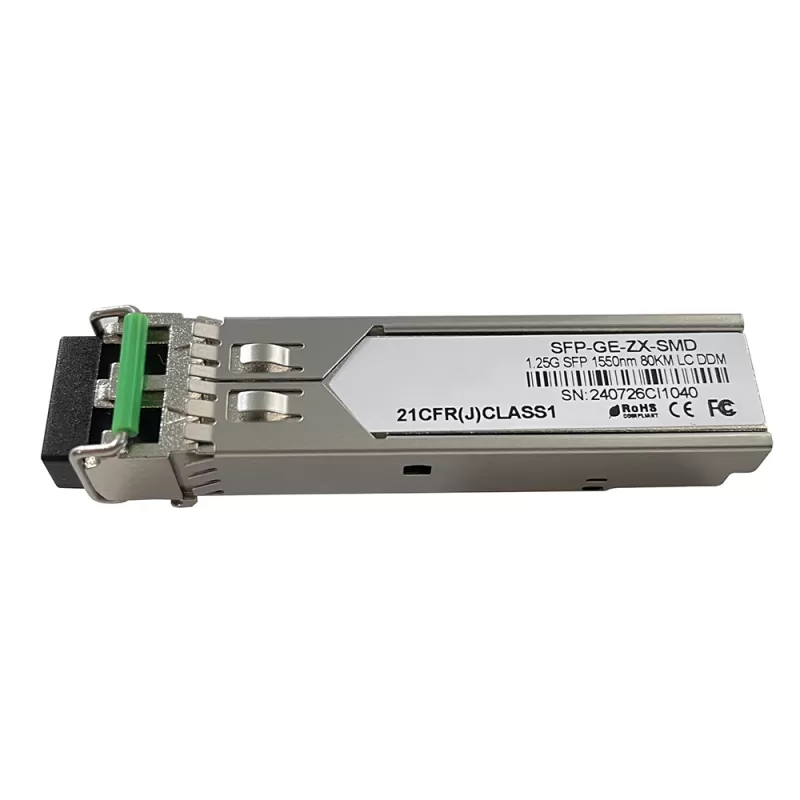

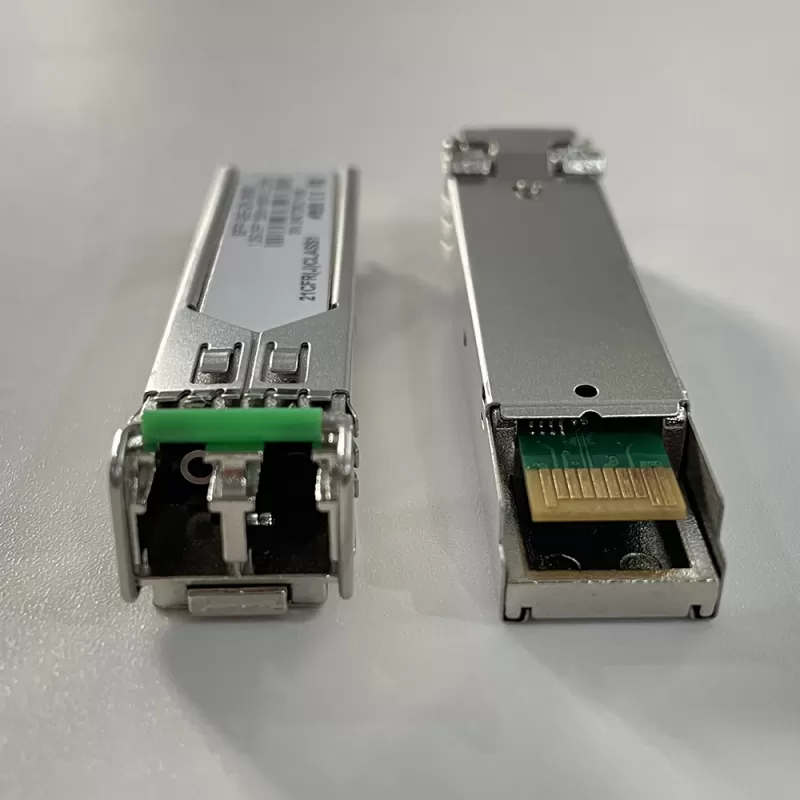

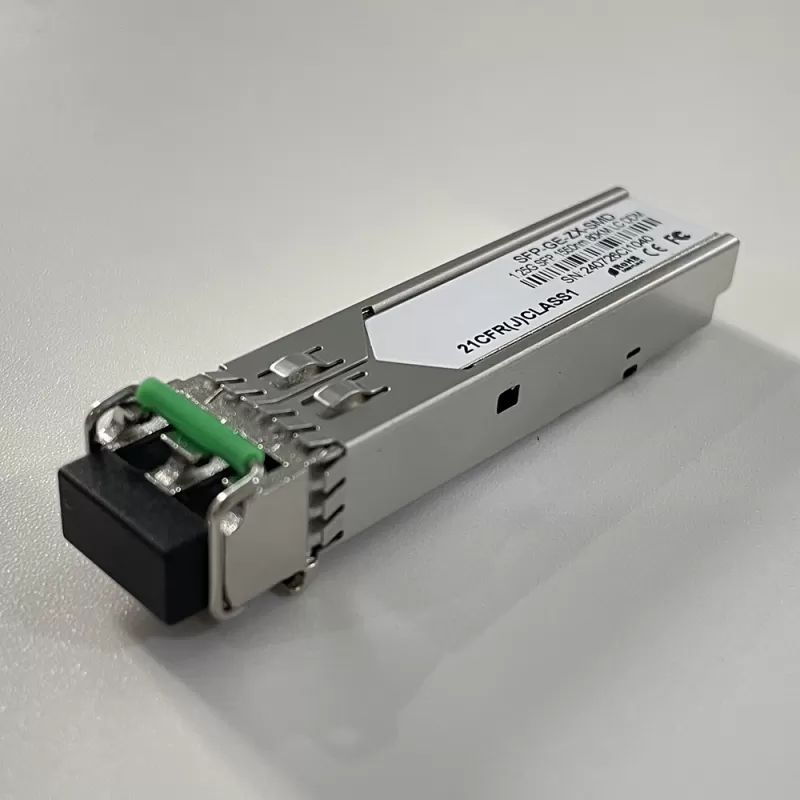

Wirenet’s gigabit optical transceiver is used in Gigabit Ethernet, dual-channel, and bidirectional transmission synchronous optical network (SONET). The compatible optical transceiver conforms to SFP multi-source protocol and SFF-8472, with digital diagnostic monitoring(DDM) function. SFP with LC interface, the rate is 1.25G, the optical wavelength is 1550NM, and the maximum transmission distance is 80KM.
Absolute Maximum Ratings of SFP 1.25G 1550nm 80Km LC Transceiver
Parameter | Symbol | Unit | Min | Max |
Storage Temperature Range | Ts | oC | -40 | +85 |
Relative Humidity | RH | % | 5 | 95 |
Power Supply Voltage | Vcc | V | -0.5 | +4 |
Recommended Operating Conditions of SFP 1.25G 1550nm 80Km LC Transceiver
Parameter | Symbol | Unit | Min | Typ | Max |
Case Operating Temperature Range | Tc | oC | -10 | 70 | |
Power Supply Voltage | Vcc | V | 3.135 | 3.3 | 3.465 |
Data rate | Gb/s | - | 1.25/1.0625 | - |
